ESTATE

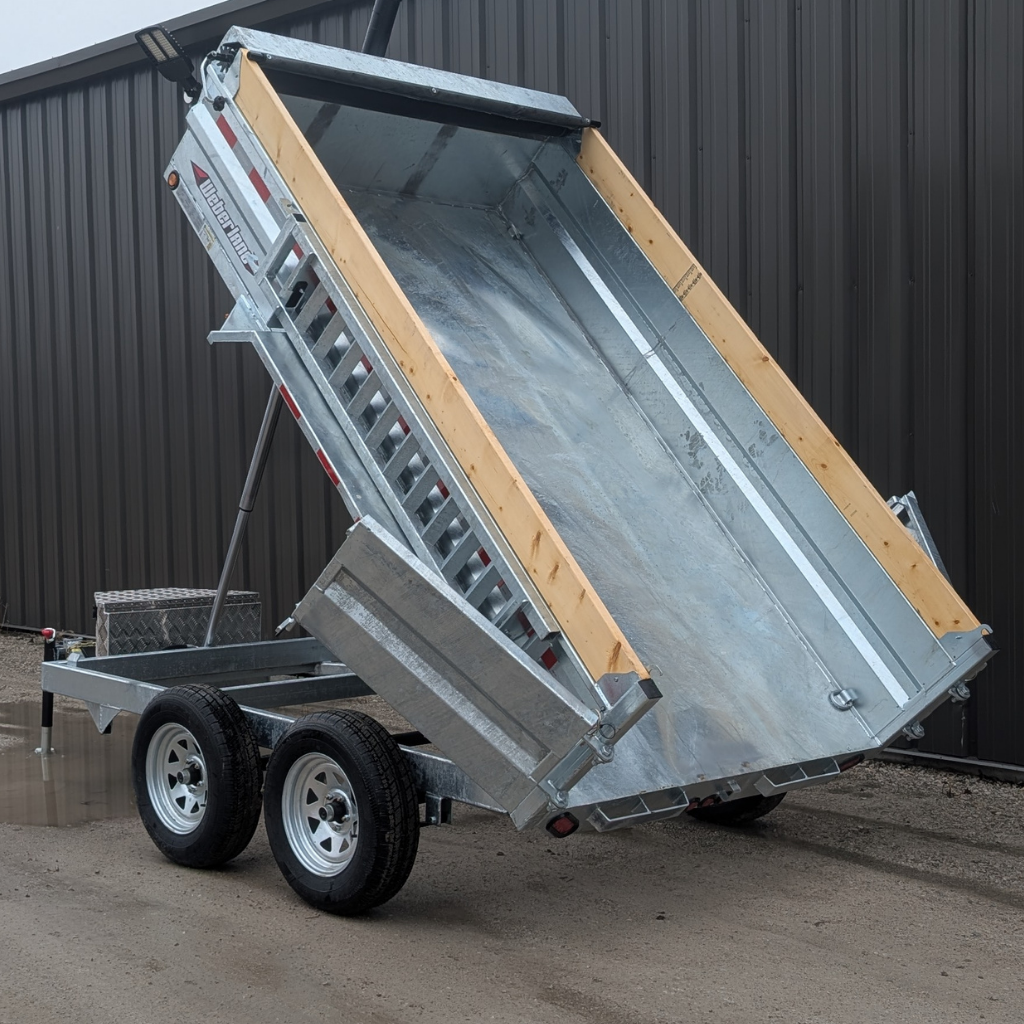

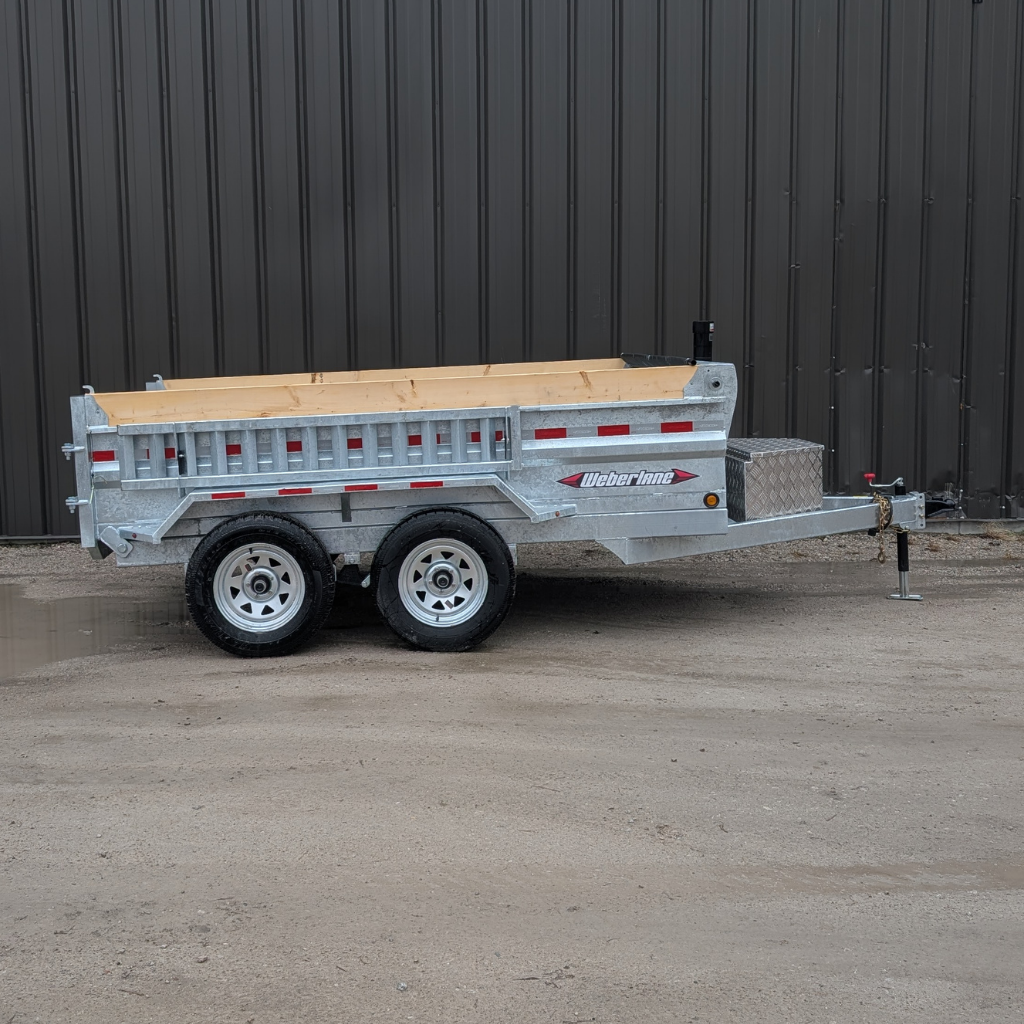

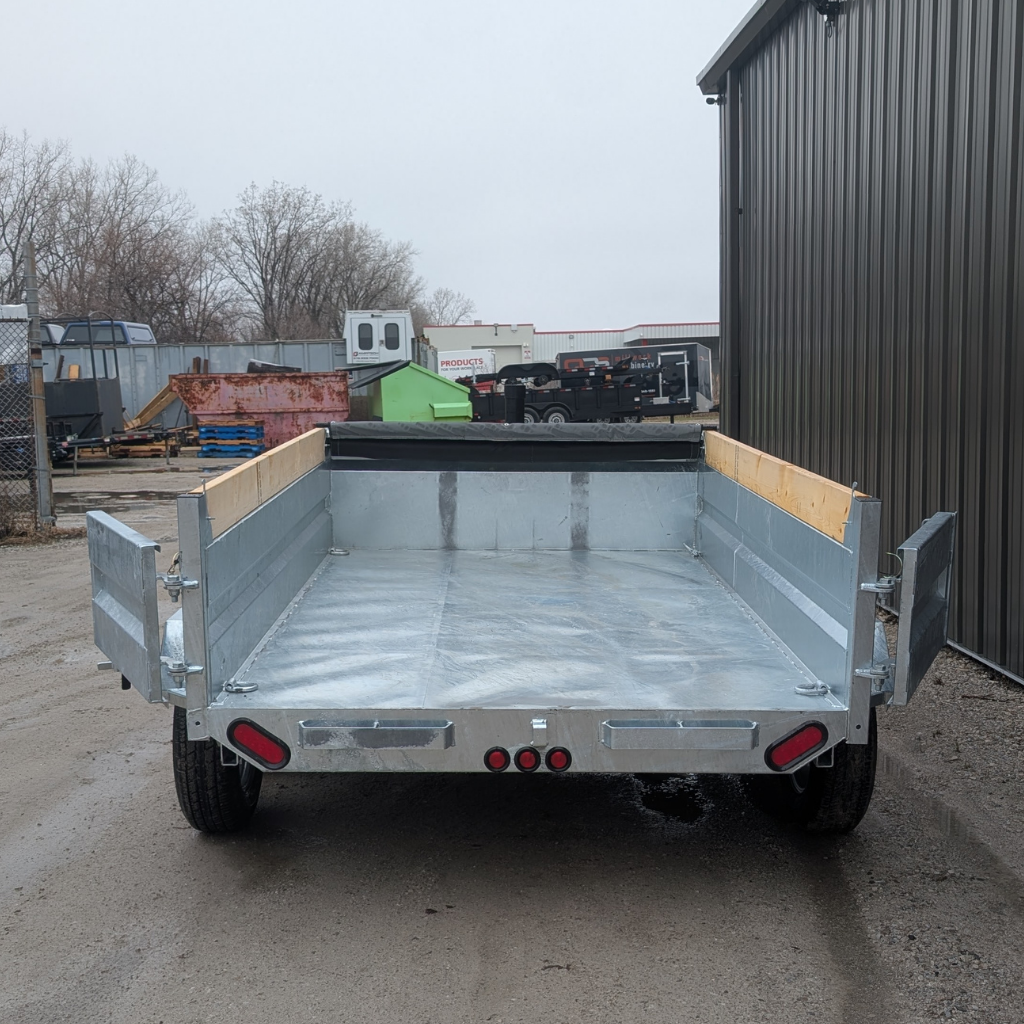

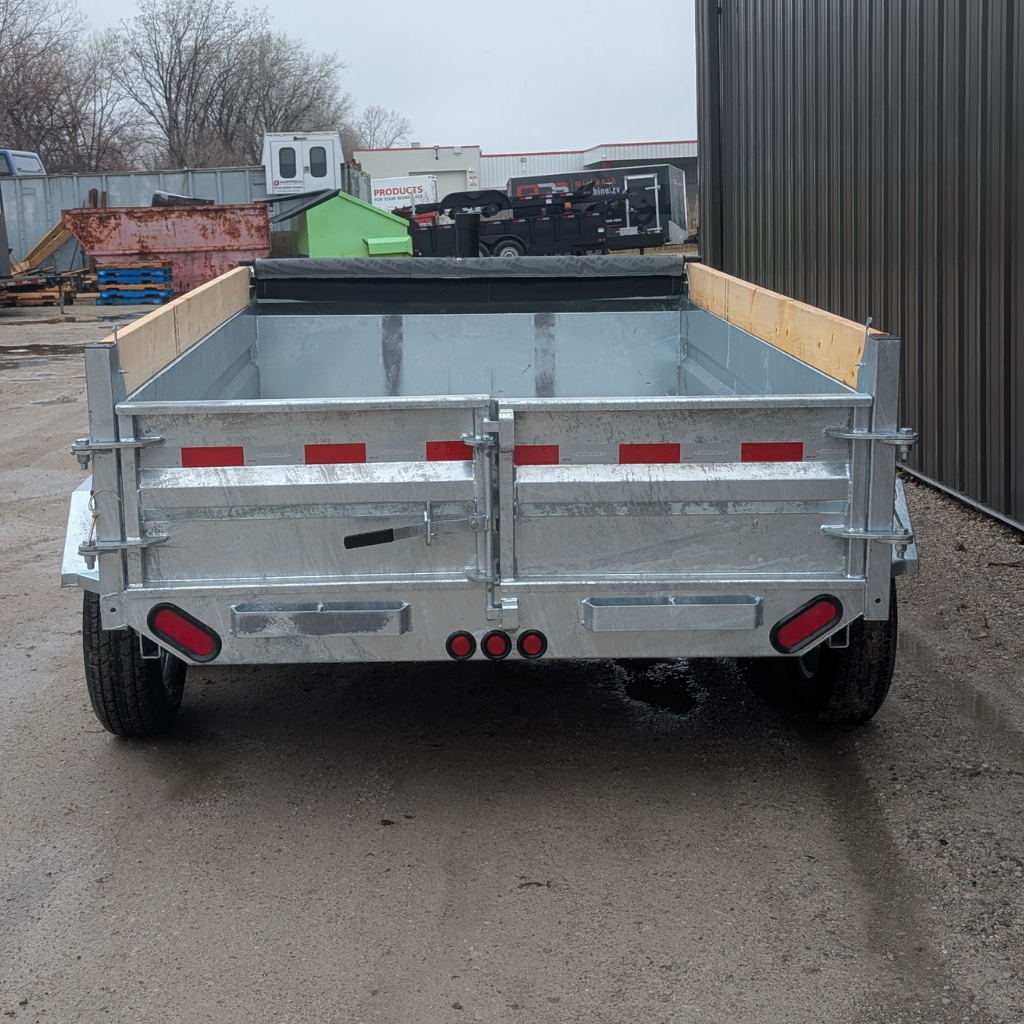

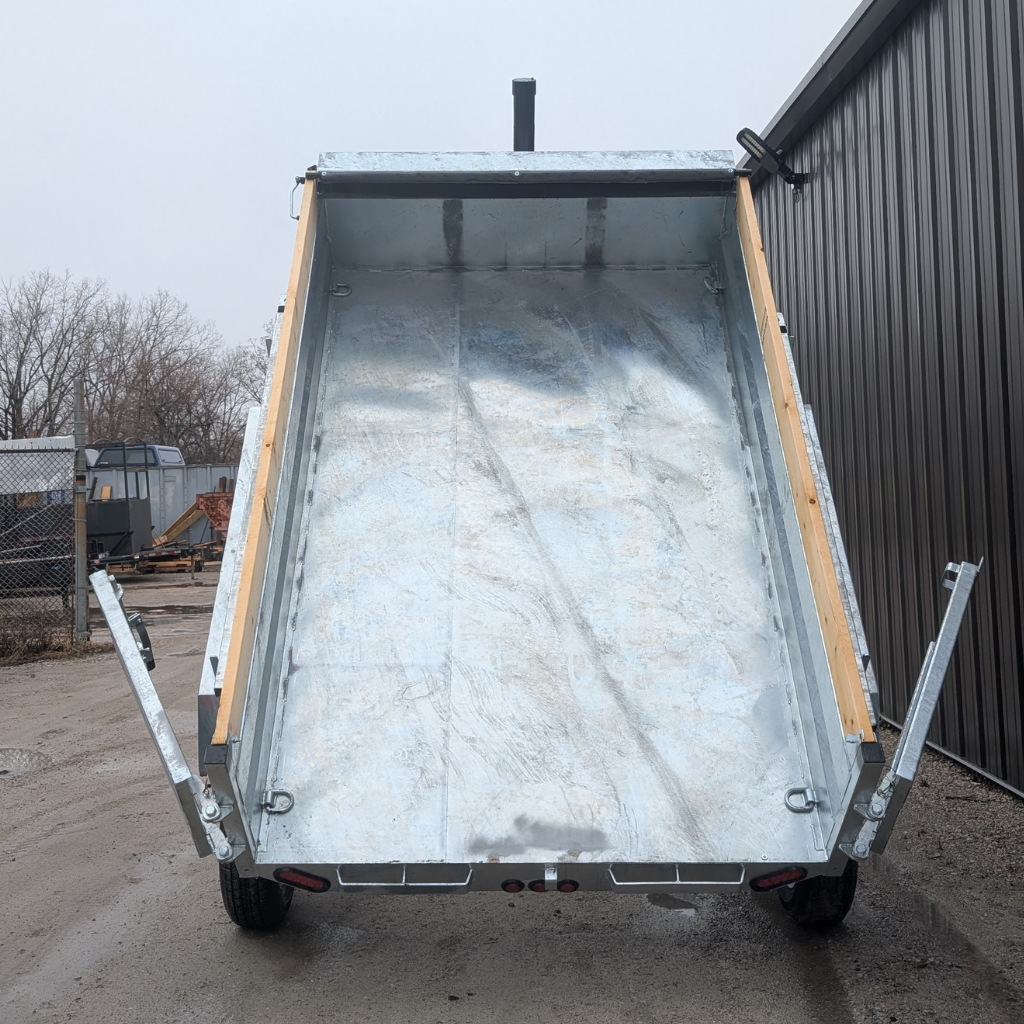

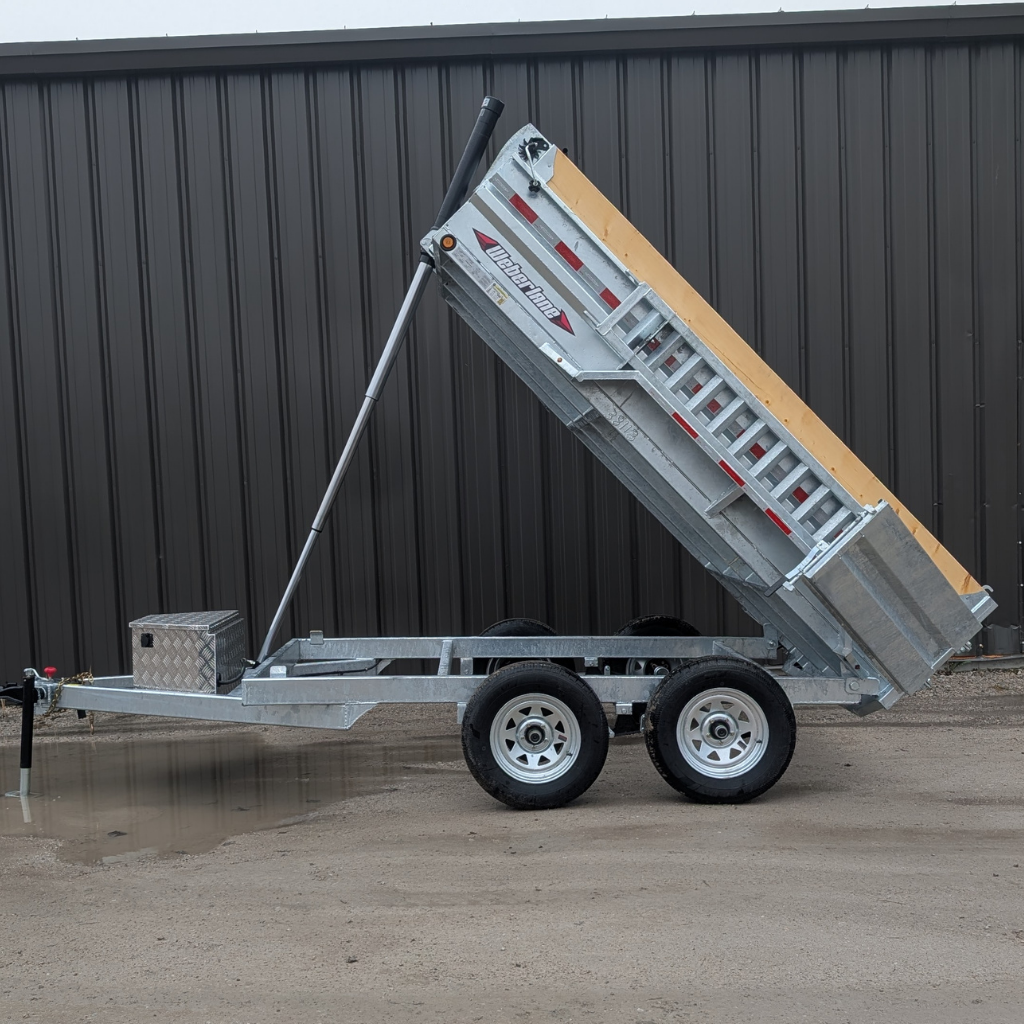

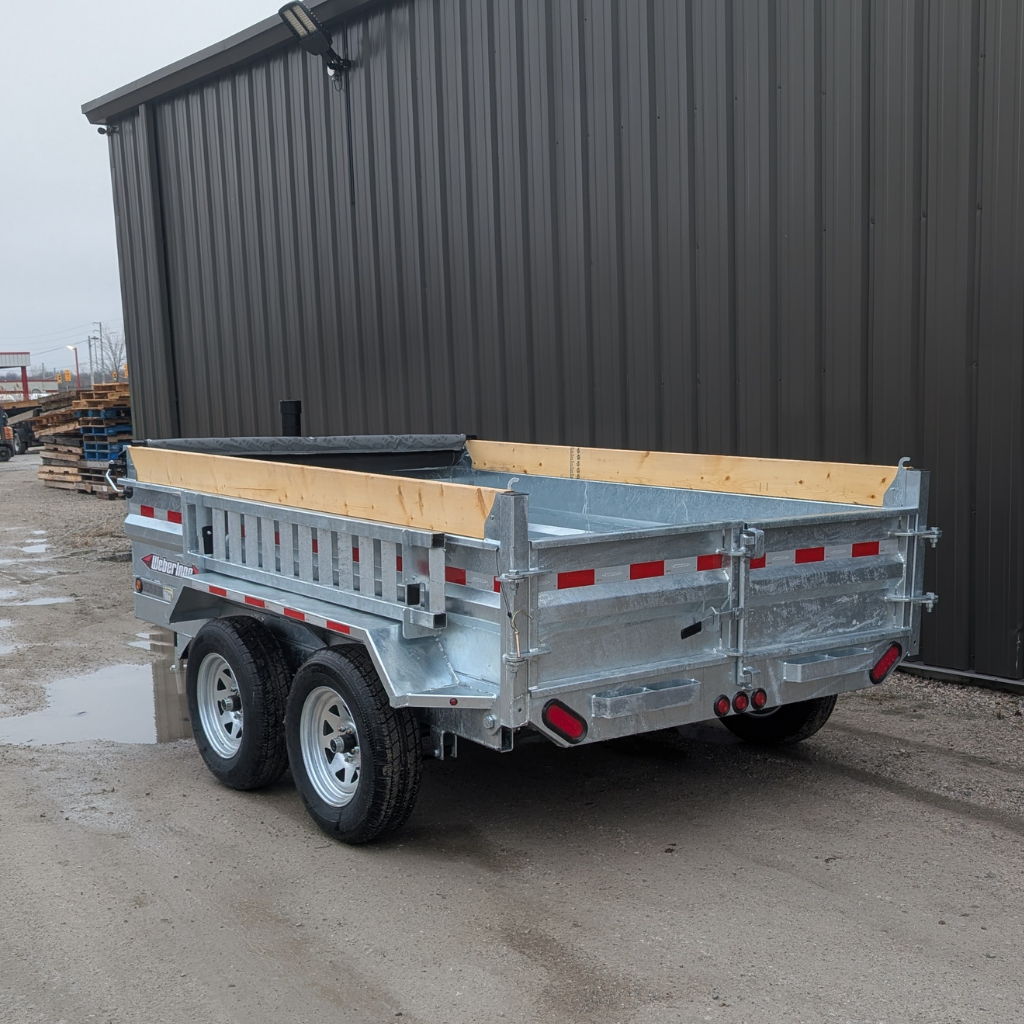

LOW PROFILE DUMP
The Weberlane Estate low profile Dumpers provide homeowners with an affordable, lightweight, and durable hauling solution suitable for 3 to 5-ton loads. Featuring single undermount piston cylinders, 10-gauge floorplates, and lighter frames that make towing easier and handling less strenuous for everyday tasks.
Galvanized
Providing enhanced durability and corrosion resistance for long-lasting performance in demanding conditions.
Trailer Features:
Spring Axles – EZE Lube Hubs
Rear Double Barn Doors with Cam Lock
Bungee Door Tie Backs
Shielded Roll Tarp w/ Crank and Bungees
White Modular Wheels withC6 Radial Tires
Steel Fenders
14,000 lb Coupler for 2 5/16″ Ball
5000 lb Top Wind Jack
18″ High Sides
Safety Chains and Reflective Marking
10 Ga. Floor Plate
12V Electric Power Pack with Remote Control
Enclosed Electric Motor and Hydraulic Tank
Undermount Piston Cylinder
Gloss Paint Finish
All Interior Wiring
Rubber Grommet Sealed Light Package
| MODEL: | ECDWL1072LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 92″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 72″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 253 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 1826 lbs |
| PAYLOAD: | 5174 lbs |
| AXLES: | 2 x 3500 lbs |
| BRAKES: | Electric 1 Axle |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Standard |
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
Contractor Level Low Profile Dump trailers are built with heavy duty construction to match the needs of professionals using these trailers day after day.
The Low Profile design features a bed that sits lower between the fenders, offering improved clearance for dumping and a narrower overall width compared to traditional deckover styles with wheels exposed, enhancing maneuverability and ease of use.
Our dump trailers are available with a galvanized option, providing enhanced durability and corrosion resistance for long-lasting performance in demanding conditions.
HD CONTRACTOR DWL1272LP
6.5′ X 12′ X 24′ + 10″ GUSSETS LOW PROFILE DUMP TRAILER
UPGRADES:
82″ WIDE BOX WIDTH
TANDEM AXLE UPGRADE 5200 LB TO 6000 LB AXLES (INCLUDES UPGRADE TO 8 BOLT WHEELS)
TANDEM AXLE UPGRADE 6000 LB TO 7000 LB AXLES
FRONT MOUNT POST HOIST
SLIDE IN RAMPS WITH D RINGS IN BOX / REAR STABILIZER JACKS
GALVANIZED TRAILER AND RIMS
WOOD BOARD ADDED TO SIDES
ALUMINUM TONGUW BOX AND 110 CHARGER ON BOARD
12 VOLT BATTERY FOR DUMP TRAILER
| Auger Diameter | 8.5 in. / 21.6 cm |
|---|---|
| Auger System | Power Curve® Rotor |
| Box Dimensions | 31.3 in x 23.2 in x 24.9 in / 79.5 cm x 58.9 cm x 62.2 cm |
| Capacity per Minute | 1900 lbs / 862 kg |
| CARB Compliant | CARB Compliant |
| Chute Control | High Capacity Polyethylene w/ Zip Deflector, Chute-Mounted Handle (210º Rotation) |
| Chute Material | Plastic |
| Chute Turning Radius (deg) | 210 |
| Clearing Surface Type / Incline | Paved |
| Clearing Width | 21 in. / 53 cm |
| Drive System | Power Propel Self Propel |
| Driveway Size | Up to 9 Car Driveway |
| Engine | Toro Premium 212cc 4-cycle OHV |
| Engine Brand | Toro |
| Engine Displacement (cc) | 212 cc |
| Fuel Capacity | 0.575 gal. / 2.2 L / 2.3 Qt. |
| Fuel Type | Gasoline |
| Ideal Snow Depth | 9 in / 22 cm |
| Intake Height | 12.5 in / 31 cm |
| Number of Forward Speeds | Variable |
| Number of Reverse Speeds | 0 |
| Product Type | Single Stage Snow Blowers |
| Product Use | Residential |
| Recommended Oil Type | 5W-30 |
| Rotor Style | Power Curve® Rotor |
| Scraper | Pivoting |
| Snow Equipment Product Type | Gas Single Stage Snow Blower |
| Snowblower Stage | Single Stage |
| Start Type | Recoil |
| Starting Guarantee | Yes |
| Throw Distance | Up to 35 ft / 10.7 m |
| Tire Height | 7 in / 17.8 cm |
| Tire Width | 1.75 in / 4.4 cm |
| Type of Snow | Fluffy, Light |
| Volume Per Minute | 1900 |
| Weight | 79 lbs / 35.8 kg |
With top hole bolt pattern
Throws snow further and faster resulting in less resistance and vehicle wear, and improved fuel economy.
Keep the blade upright and offer ample room for addition of a shock absorber kit, if desired.
Rolls the snow nicely, keeps it down on the blade and away from the vehicle’s windshield.
Back our frictionless poly moldboard with the strength of steel.
Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.
From 3 steel support structures that run the width of the moldboard.
Provides added resistance to abrasion, water and rust, making our plows virtually maintenance free.
For Extra lift, strength and safety
Improve surface clearance while plowing forward.
Secure the blade to the quadrant and A-frame assembly, eliminating pin seizure, and easing pin replacement.
| Plow Model | 90P | 96P | 102P | 108P |
|---|---|---|---|---|
| Blade Length | 90″ | 96″ | 102″ | 108″ |
| Blade Height | 29″ | 29″ | 29″ | 29″ |
| Blade Skin | 3/8″ Poly | 3/8″ Poly | 3/8″ Poly | 3/8″ Poly |
| Trip Springs | 4 | 4 | 4 | 4 |
| Reinforced Ribs | 7 | 7 | 7 | 7 |
| Lift Cylinder | 1 1/2″ x 6″ | 1 1/2″ x 6″ | 2″ x 6″ | 2″ x 6″ |
| Angling Cylinder | 1 1/2″ x 10″ | 1 1/2″ x 10″ | 1 1/2″ x 10″ | 1 1/2″ x 10″ |
| Plowing width at full blade angle | 78″ | 83″ | 88″ | 94″ |
| Approximate weight | 674 lbs | 691 lbs | 776 lbs | 788 lbs |
| Cutting Edge | 1/2″ x 6″ Steel | 1/2″ x 6″ Steel | 1/2″ x 6″ Steel | 1/2″ x 6″ Steel |
| Mounting Type | Quik*Link™ IV – Detachable | Quik*Link™ IV – Detachable | Quik*Link™ IV – Detachable | Quik*Link™ IV – Detachable |
Approximate weight does not include vehicle mounting kit
The SaltDogg TGS06 10 Cubic Foot Tailgate Spreader is a large volume tailgate spreader ideal for commercial applications using #1 rock salt. It works with 3/4 ton and 1 ton trucks.
The spreader features a corrosion-resistant 10 cubic foot poly hopper. It can be easily mounted to a 2 in. Class 4 receiver, and also includes a universal stake pocket attachment.
The TGS06 is a gravity-fed spreader with a manual open/close gate and an 80 lb-capacity vibrator to keep material moving. Its 9 in. poly spinner can cast material up to 30 feet. The spinner is controlled by an
