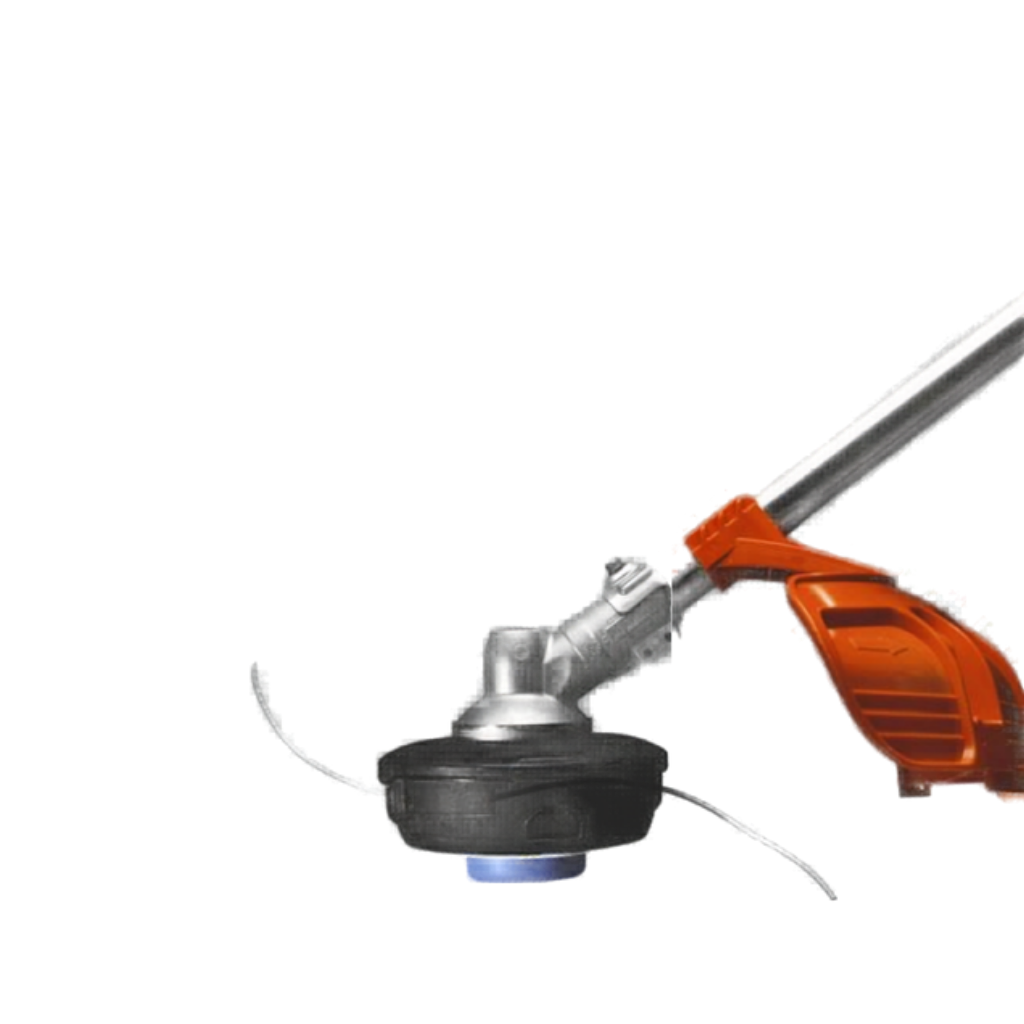

Husqvarna’s 535LS is a heavy-duty, high-powered trimmer in the 35cc class that’s intended for daily use by hardworking landscapers. Easy to maintain and service, this straight shaft trimmer features pro-grade components and intuitive controls. Our patented X-Torq® engine means more power and less fuel consumption and emissions compared to conventional engines. Plus, the 535LS features a heavy-duty bevel gear for high torque during trimming operations.

FEATURES

• Heavy duty bevel gear: Transmission and bevel gear in proven design together with a sturdy trimmer head for trouble free work.
• Auto return stop switch: Stop switch automatically resets to the ON position for easier starting.
• X-Torq® engine: The X-Torq® engine design reduces harmful exhaust emissions by up to 60% and increases fuel efficiency by up to 20%.
• Air Purge: Removes air from carburetor and fuel system for easy starting.

• Deck Size: 19.7 in
• Horsepower: 2.15 hp
• Displacement: 34.6 cm³
• Weight: 12.13 lbs
• Product Size, LxWxH: 70.6x10x9.8 in
• Tube Length: 58.386 in
• Tube Diameter: 1.1 in
• Exhaust emissions (CO average): 418.31 g/kWh
• Exhaust emissions (CO average): 243.69 g/kWh
• Cylinder displacement: 34.6 cm³
• Power output: 2.15 hp
• Maximum power speed: 8400 rpm
• Fuel tank volume: 20.29 fl oz
• Fuel consumption: 475 g/kWh
• Fuel consumption: 2.18 lbs/h
• Idling speed: 2900 rpm
• Spark plug: Champion RCJ6Y
• Electrode gap: 0.02 in
• Torque, max. at rpm: 6600 rpm
• Torque, max.: 1.9 Nm
• Clutch engagement speed (±120): 4300 rpm
• Maximum rpm output shaft: 9070 rpm
• OEM Trimmer head: T35X M10
• Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
• Sound pressure level at operators ear: 100 dB(A)
• Sound power level, guaranteed (LWA): 114 dB(A)
• Gear ratio: 1.29
• Drive gear angle: 30 °
• Equivalent vibration level (ahv, eq) front handle: 4.7 m/s²
• Equivalent vibration level (ahv, eq) rear handle: 6.6 m/s²
