The 29R Series 2 snowplow is 8’10” wide and 29 inches tall plow and moves more snow than any plow in this class.

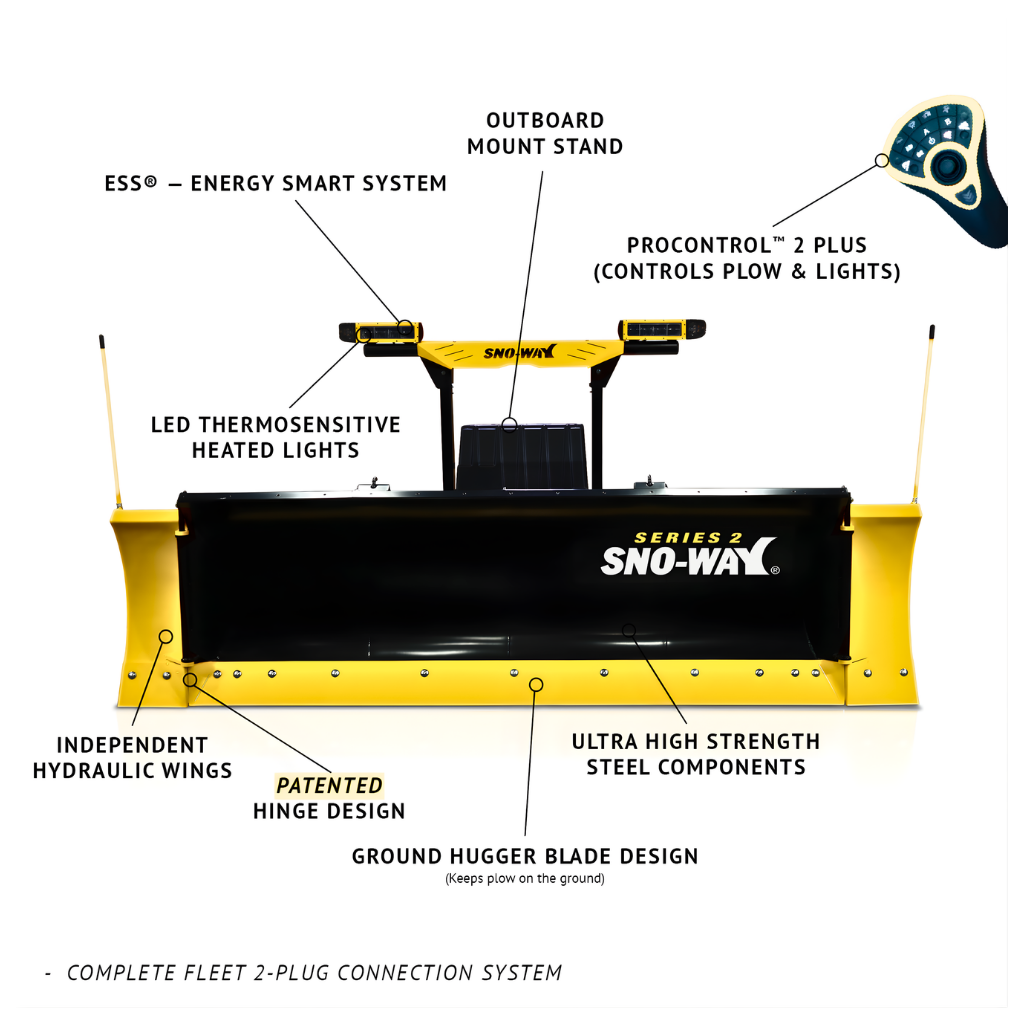

The “R” in the model identifier refers to the Revolution™ series of snowplows. These plows are designed with patented hydraulic end wings that that can be controlled together or independently to move the snow where you want it at any time.

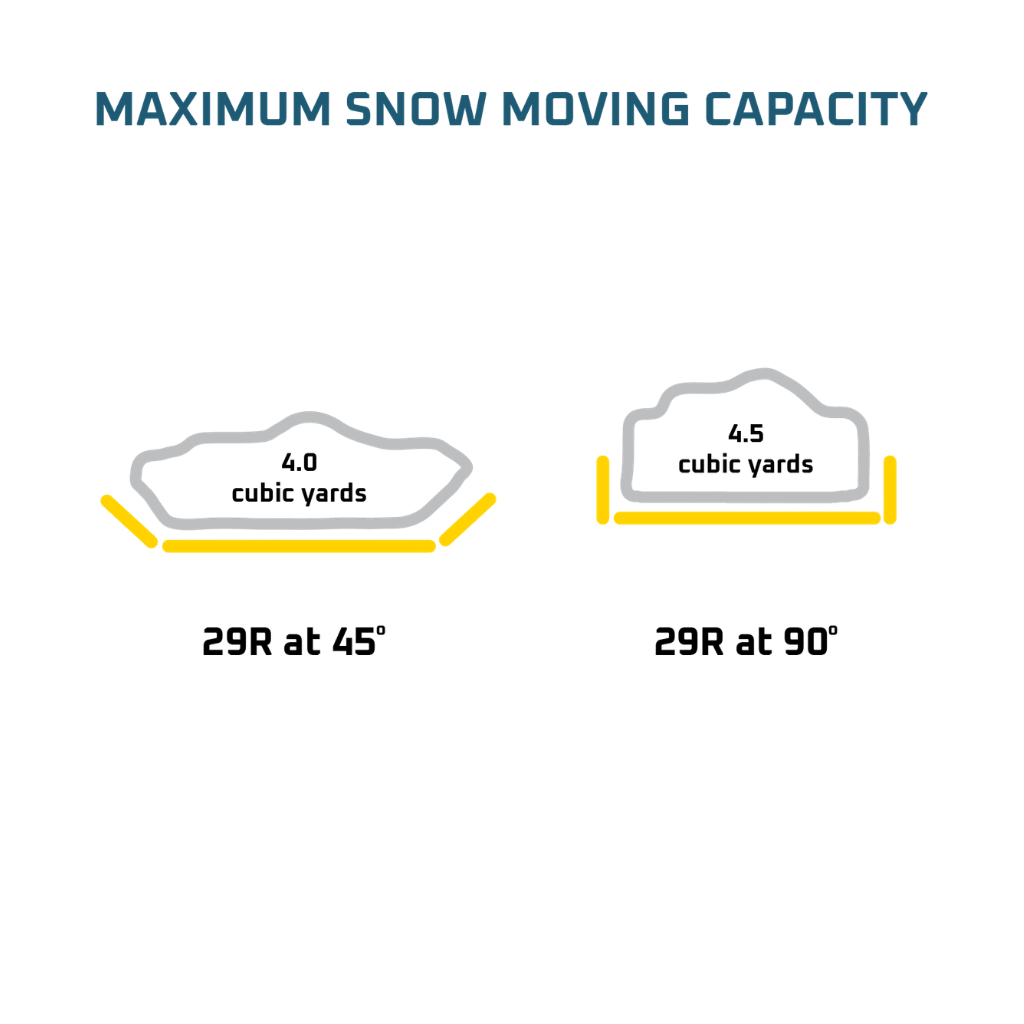

Each wing can be moved from a straight out position into a 90 degree orientation to the main blade – effectively creating a box plow. This patented dual-wing plow design provides you the ability to move up to 4.8 cubic yards of snow which is double the closest competitor’s V plow or expandable plow!

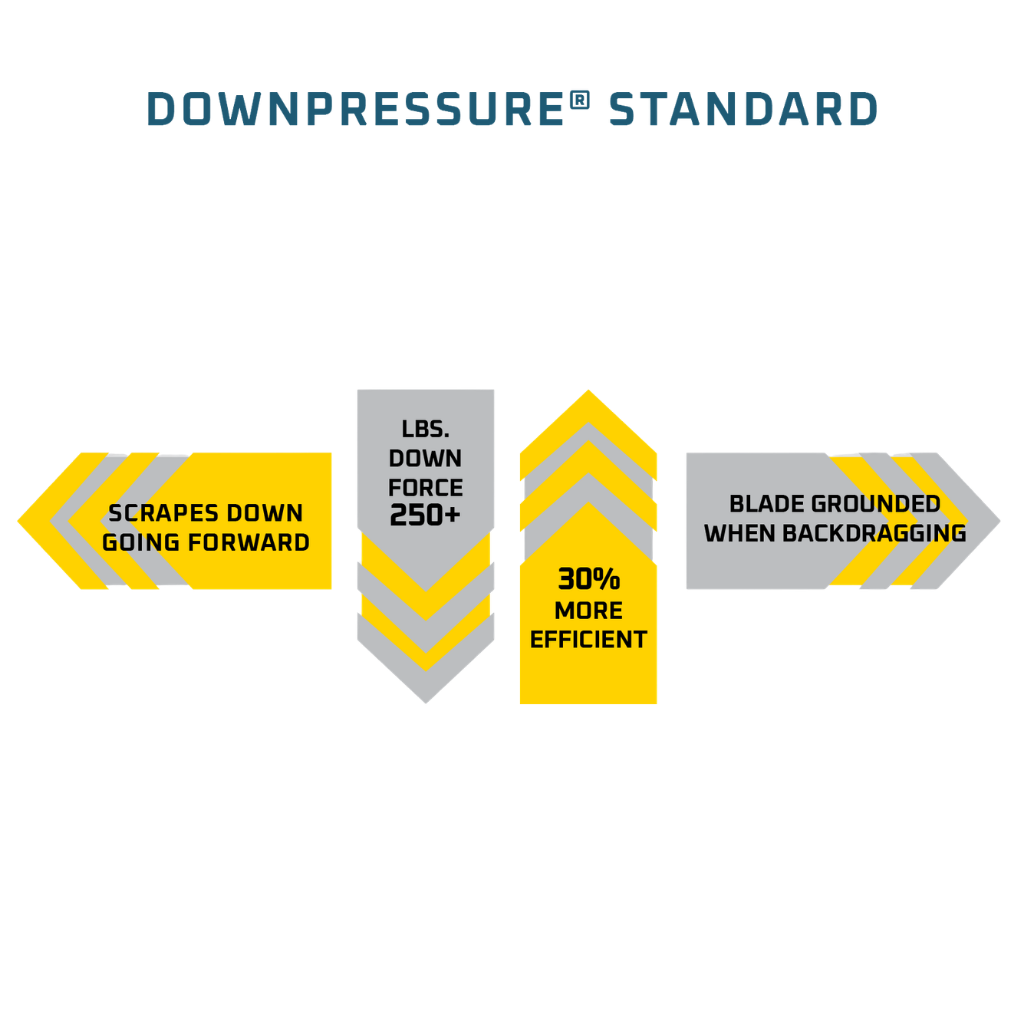

Engage the Patented Down Pressure® Hydraulics System that increases snow clearing capacity another 30% and you have the ultimate snow clearing machine.
Common Truck Applications: 3/4 Ton: F-250, Ram 2500, 2500 Sierra, 2500 Silverado 1 Ton: F-350, Ram 3500, 3500 Sierra, 3500 Silverado
29R
106″
92″
29″
8’10”
705 lbs.
3/8″ x 6″
5
2
optional
Standard
Standard
ESS®LED Thermosensitive
Standard
Standard
Optional
Drive In
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
| MODEL: | ECDWL1060LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 80″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 60″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 250 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 2990 lbs |
| CURB WEIGHT: | 1562 lbs |
| PAYLOAD: | 1428 lbs |
| AXLES: | 1 x 3500 lbs |
| BRAKES: | Optional |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Optional |
#### OVERVIEW
Weberlane Enclosed Cargo trailers are known for their quality components and durable build. The Weberlane line is ideal for contractors and landscapers who are looking for an enclosed trailer a cut above the rest to ensure peace of mind when they’re out on the road on a daily basis, and every moment of downtime would mean loss of profits.
#### FEATURES
Single Double Doors w/ Door Holders
Semi-Style Cam-lock Door Latches
Spring Axle – EZ Lube Hubs
White Modular Wheels
Radial Tires
2″ Coupler 5000 lbs
Top Wing Jack 2000 lbs
Bolt-on Safety Chains
1/4″ Paneling Interior Lining
Interior Light Switch
Interior Dome Light
030 Aluminum Exterior
Screwless Aluminum Roof
Aluminum Tread Plate Stoneguard
Aluminum Fenders
1 1/2″ Trim Level
Molded License Plate Holder
Entire Steel Framework Painted
3M Corrosion Barrier
#### SPECS
Overall Length: 14′
Overall Width: 7′ 8″
Overall Height: 7′ 10″
Interior Length: 11′ 10″
Interior Width: 5′ 9″
Interior Height: 72″
Rear Door Type: Double
Door Width: 5′ 3″
Door Height: 5′ 5″
Hitch Weight: 175 lbs
Hitch Height: 16″
Ball Size: 2″
Platform Height: 18″
G.V.W.R: 2990 lbs
Cub Weight: 1220 lbs
Payload: 1770 lbs
Axles (Single): 3500 lbs
Brakes: Optional
Tires: ST205/75 R15
Wheels:1 5″ 5 Bolt
Frame: 2 x 3″ Tubing
Floor (24″ O/C): 3/4″ Marine Grade
Sidewalls (16″ O/C): 1/4″ Paneling
MODEL: W716ACTW
Tandem axle
ALUMINUM CARGO TRAILERS
Aluminum Frame Enclosed Trailers are the style to choose if you are tired of stone chipped trailer frames, rusty tongues or corroded cross members. Ideal for lighter use applications. All Weberlane Aluminum Frame enclosed trailers are built to contractors specs, like tubing wall studs, 16″ floor and stud spacing, 3/8 inch interior linings and wider roof trim.
| MODEL: | W716ACTW |
| OVERALL LENGTH: | 20′ 6″ |
| OVERALL WIDTH: | 8′ 6″ |
| OVERALL HEIGHT: | 8′ |
| INTERIOR LENGTH: | 18′ 2″ |
| INTERIOR WIDTH: | 6′ 9″ |
| INTERIOR HEIGHT: | 72″ |
| REAR DOOR TYPE: | Double |
| REAR DOOR WIDTH: | 6′ 3″ |
| REAR DOOR HEIGHT: | 5′ 5″ |
| HITCH WEIGHT: | 395 lbs |
| HITCH HEIGHT: | 18″ |
| BALL SIZE | 2 5/16″ |
| PLATFORM HEIGHT: | 20″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 2140 lbs |
| PAYLOAD: | 4860 lbs |
| AXLES (TANDEM): | 3500 lbs |
| BRAKES: | Electric |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| FRAME: | 2 x 6″ Tubing |
| FLOOR: (16″ O/C) | 3/4″ Marine Grade |
| SIDEWALLS (16″ O/C) | 3/8″ Wafer Board |
2026 WEBER LANE 82X14 CONTRACTOR SERIES DUMP 14000 GVWR GALVANIZED
| MODEL: | DWL1472LP |
| OVERALL LENGTH: | 18′ |
| OVERALL WIDTH: | 98″ |
| OVERALL HEIGHT: | 64″ |
| EXT. BOX LENGTH: | 14′ |
| EXT. BOX WIDTH: | 78″ |
| BOX DEPTH: | 24″ + 10″ Gussets |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 449 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 10,138 lbs |
| CURB WEIGHT: | 2926 lbs |
| PAYLOAD: | 7212 lbs |
| AXLES (Tandem): | 2 x 5200 lbs |
| BRAKES: | Electric 2 Axles |
| TIRES: | ST225/75 R15 C |
| WHEELS: | 15″ 6 Bolt |
| BREAK AWAY KIT: | Standard |
| MODEL: | DWL1472LP |
| OVERALL LENGTH: | 18′ |
| OVERALL WIDTH: | 98″ |
| OVERALL HEIGHT: | 64″ |
| EXT. BOX LENGTH: | 14′ |
| EXT. BOX WIDTH: | 78″ |
| BOX DEPTH: | 24″ + 10″ Gussets |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 449 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 10,138 lbs |
| CURB WEIGHT: | 2926 lbs |
| PAYLOAD: | 7212 lbs |
| AXLES (Tandem): | 2 x 5200 lbs |
| BRAKES: | Electric 2 Axles |
| TIRES: | ST225/75 R15 C |
| WHEELS: | 15″ 6 Bolt |
| BREAK AWAY KIT: | Standard |
| MODEL: | ECDWL1072LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 92″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 72″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 253 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 1826 lbs |
| PAYLOAD: | 5174 lbs |
| AXLES: | 2 x 3500 lbs |
| BRAKES: | Electric 1 Axle |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Standard |
