The 29R Series 2 snowplow is 8’10” wide and 29 inches tall plow and moves more snow than any plow in this class.

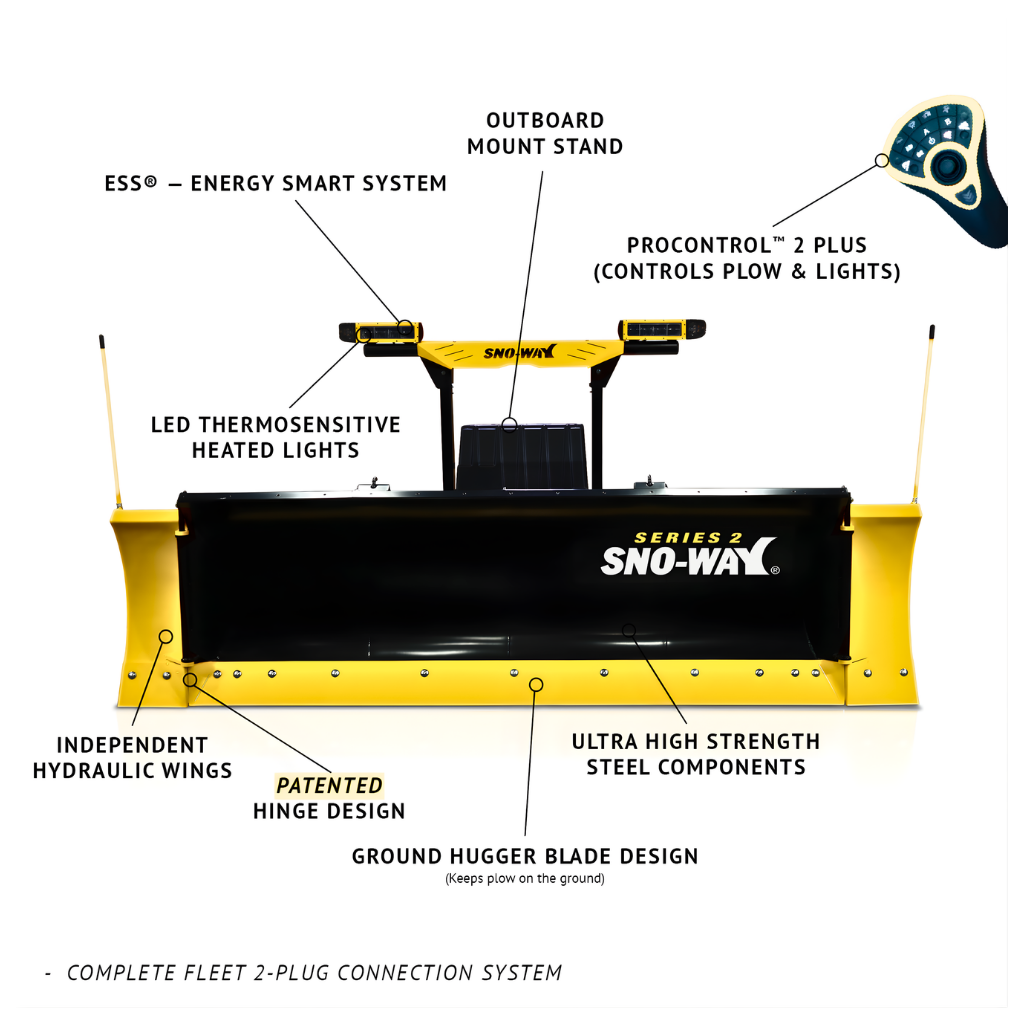

The “R” in the model identifier refers to the Revolution™ series of snowplows. These plows are designed with patented hydraulic end wings that that can be controlled together or independently to move the snow where you want it at any time.

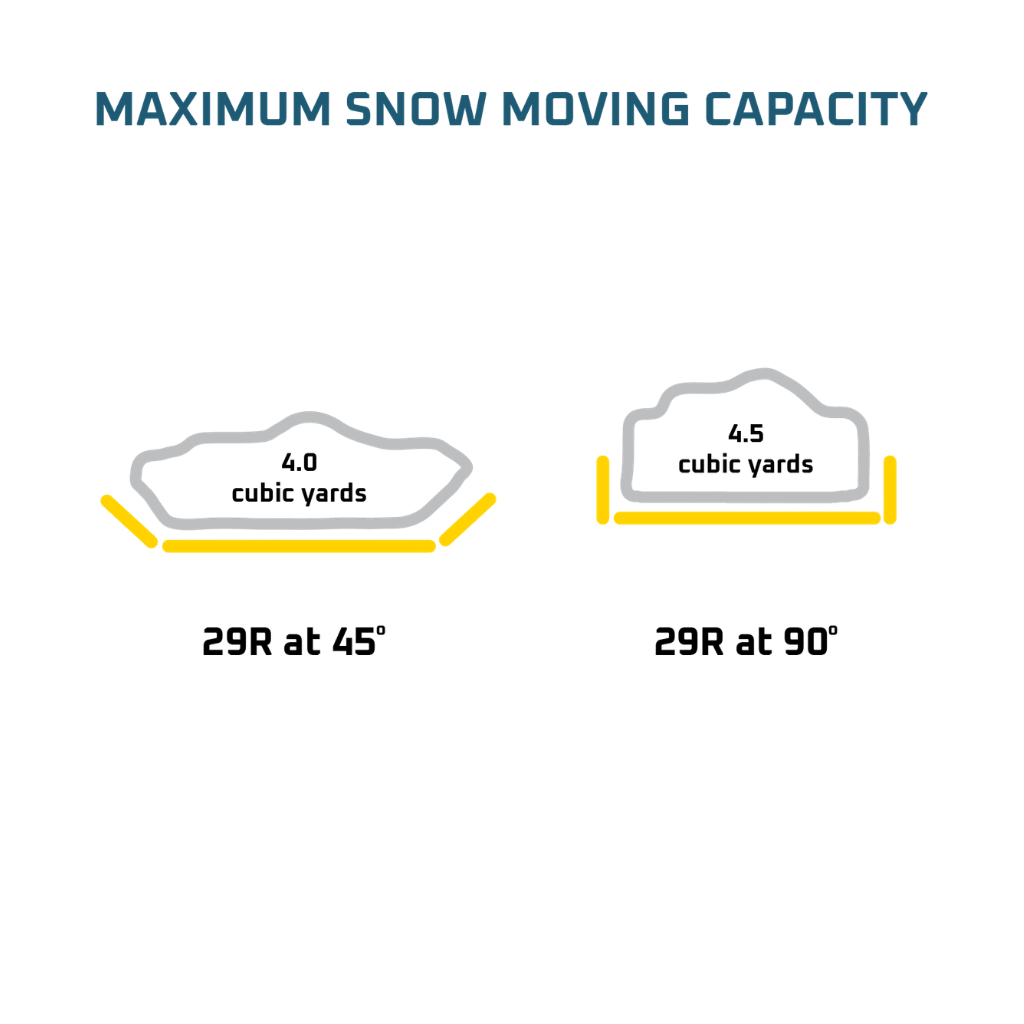

Each wing can be moved from a straight out position into a 90 degree orientation to the main blade – effectively creating a box plow. This patented dual-wing plow design provides you the ability to move up to 4.8 cubic yards of snow which is double the closest competitor’s V plow or expandable plow!

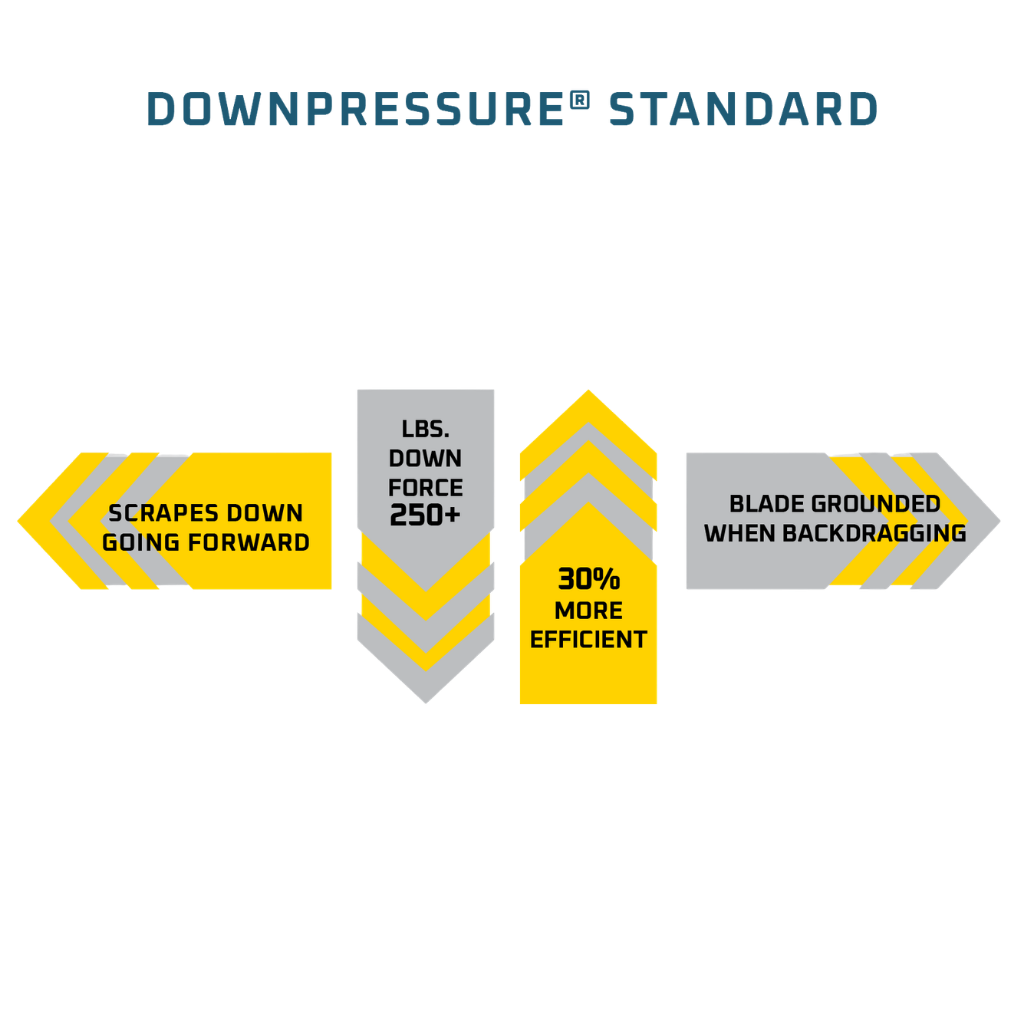

Engage the Patented Down Pressure® Hydraulics System that increases snow clearing capacity another 30% and you have the ultimate snow clearing machine.
Common Truck Applications: 3/4 Ton: F-250, Ram 2500, 2500 Sierra, 2500 Silverado 1 Ton: F-350, Ram 3500, 3500 Sierra, 3500 Silverado
29R
106″
92″
29″
8’10”
705 lbs.
3/8″ x 6″
5
2
optional
Standard
Standard
ESS®LED Thermosensitive
Standard
Standard
Optional
Drive In
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
The Weberlane Estate low profile Dumpers provide homeowners with an affordable, lightweight, and durable hauling solution suitable for 3 to 5-ton loads. Featuring single undermount piston cylinders, 10-gauge floorplates, and lighter frames that make towing easier and handling less strenuous for everyday tasks.
| MODEL: | ECDWL1072LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 92″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 72″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 253 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 1826 lbs |
| PAYLOAD: | 5174 lbs |
| AXLES: | 2 x 3500 lbs |
| BRAKES: | Electric 1 Axle |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Standard |
ESTATE
LOW PROFILE DUMP
The Weberlane Estate low profile Dumpers provide homeowners with an affordable, lightweight, and durable hauling solution suitable for 3 to 5-ton loads. Featuring single undermount piston cylinders, 10-gauge floorplates, and lighter frames that make towing easier and handling less strenuous for everyday tasks.
Galvanized
Providing enhanced durability and corrosion resistance for long-lasting performance in demanding conditions.
Trailer Features:
Spring Axles – EZE Lube Hubs
Rear Double Barn Doors with Cam Lock
Bungee Door Tie Backs
Shielded Roll Tarp w/ Crank and Bungees
White Modular Wheels withC6 Radial Tires
Steel Fenders
14,000 lb Coupler for 2 5/16″ Ball
5000 lb Top Wind Jack
18″ High Sides
Safety Chains and Reflective Marking
10 Ga. Floor Plate
12V Electric Power Pack with Remote Control
Enclosed Electric Motor and Hydraulic Tank
Undermount Piston Cylinder
Gloss Paint Finish
All Interior Wiring
Rubber Grommet Sealed Light Package
| MODEL: | ECDWL1072LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 92″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 72″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 253 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 1826 lbs |
| PAYLOAD: | 5174 lbs |
| AXLES: | 2 x 3500 lbs |
| BRAKES: | Electric 1 Axle |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Standard |
Contractor Level Low Profile Dump trailers are built with heavy duty construction to match the needs of professionals using these trailers day after day.
The Low Profile design features a bed that sits lower between the fenders, offering improved clearance for dumping and a narrower overall width compared to traditional deckover styles with wheels exposed, enhancing maneuverability and ease of use.
Our dump trailers are available with a galvanized option, providing enhanced durability and corrosion resistance for long-lasting performance in demanding conditions.
HD CONTRACTOR DWL1272LP
6.5′ X 12′ X 24′ + 10″ GUSSETS LOW PROFILE DUMP TRAILER
UPGRADES:
82″ WIDE BOX WIDTH
TANDEM AXLE UPGRADE 5200 LB TO 6000 LB AXLES (INCLUDES UPGRADE TO 8 BOLT WHEELS)
TANDEM AXLE UPGRADE 6000 LB TO 7000 LB AXLES
FRONT MOUNT POST HOIST
SLIDE IN RAMPS WITH D RINGS IN BOX / REAR STABILIZER JACKS
GALVANIZED TRAILER AND RIMS
WOOD BOARD ADDED TO SIDES
ALUMINUM TONGUW BOX AND 110 CHARGER ON BOARD
12 VOLT BATTERY FOR DUMP TRAILER
