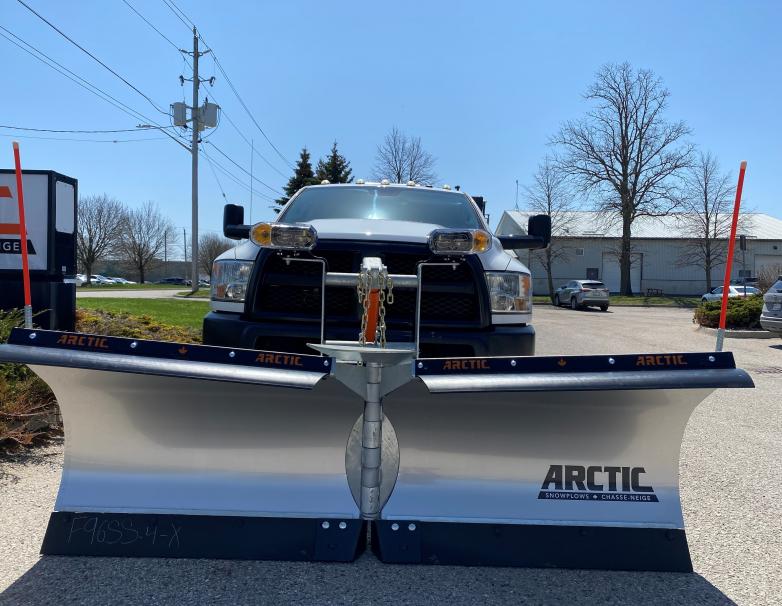

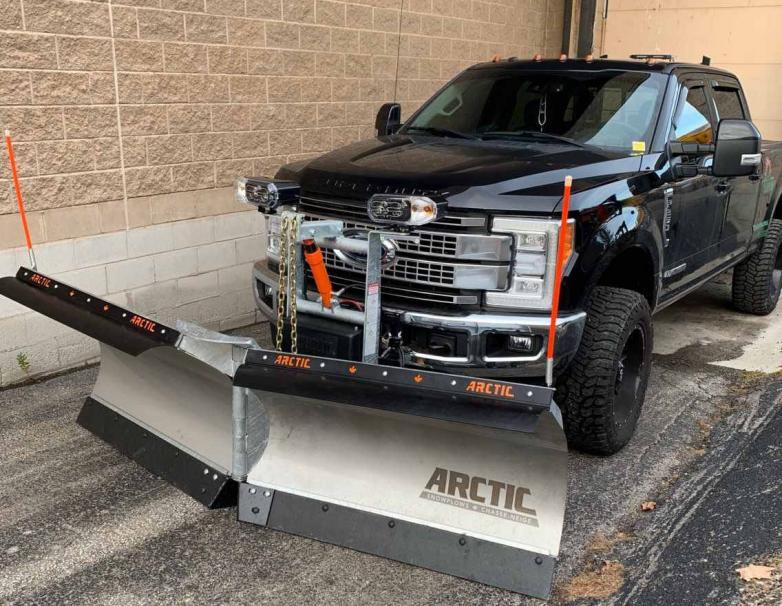

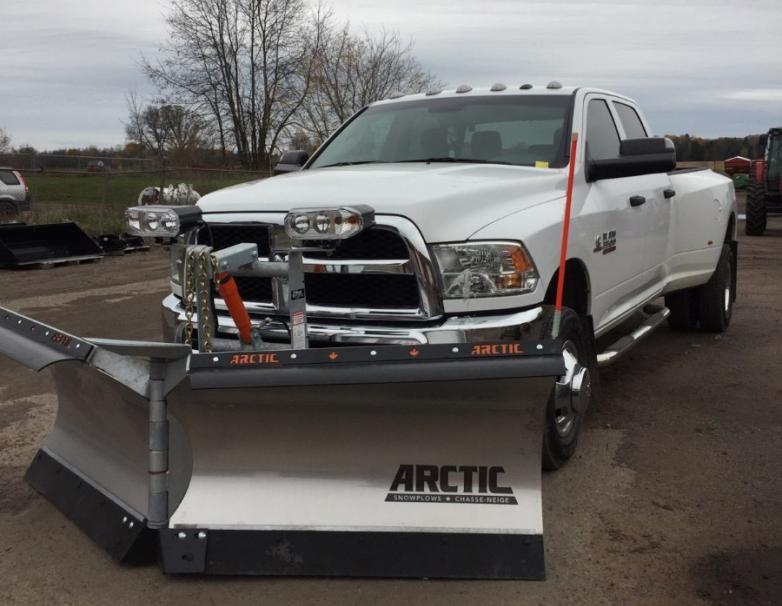

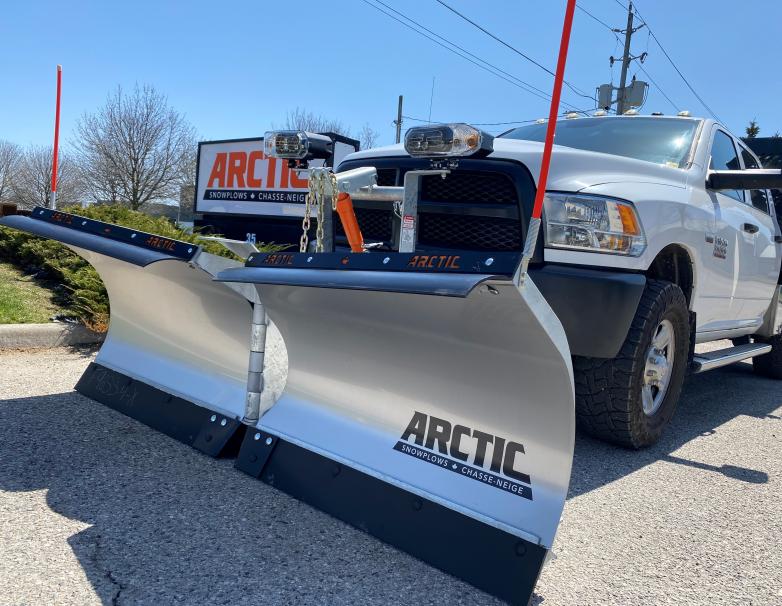

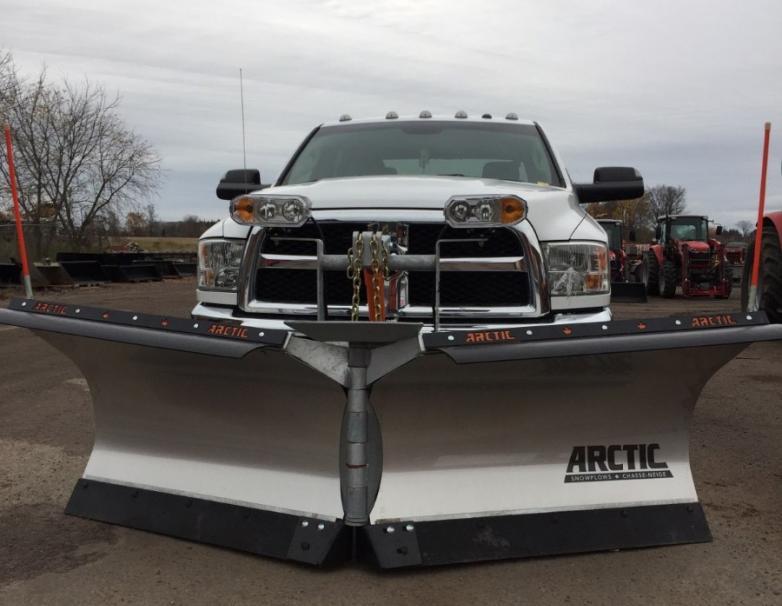

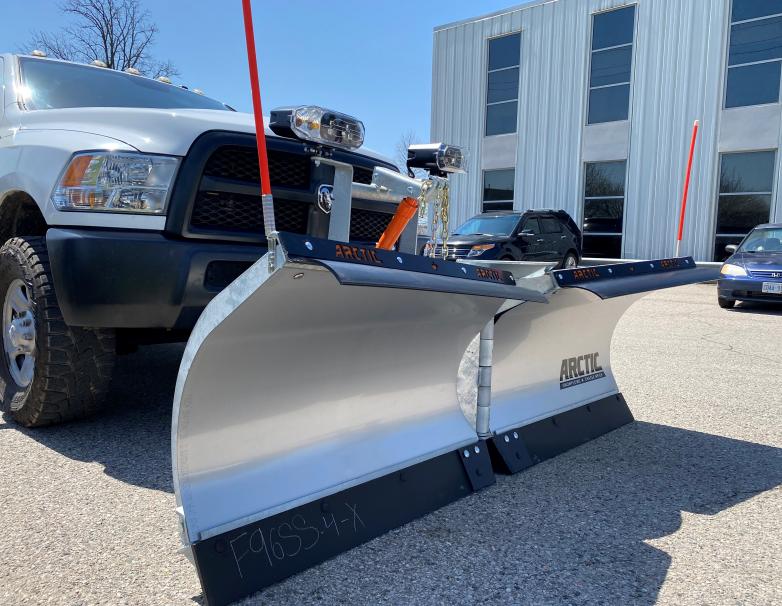

Built for full-size vehicles and larger, the Arctic Flared V SS Plow offers the additional security of trip-edge
technology. Featuring a steel cutting edge that flips back and under – or “trips” – when it encounters a
fixed object with sufficient force, the Arctic Flared V SS Plow provides extra peace of mind in extra-rugged
terrain.
| Plow Model | F96SS | F108SS |
|---|---|---|
| Blade Length | 96″ | 108″ |
| Blade Height | 31″ at center / 33 3/4″ at the end | 31″ at center / 33 3/4″ at the end |
| Blade Skin | 12Ga SS | 12Ga SS |
| Compressible Springs | 4 | 4 |
| Reinforced Ribs | 8 | 8 |
| Lift Cylinder | 2″ x 6″ | 2″ x 6″ |
| Angling Cylinder | 1 1/2″ x 9″ | 1 1/2″ x 9″ |
| Plowing width at full blade angle | 84″ | 94″ |
| Approximate weight | 900 lbs | 951 lbs |
| Cutting Edge | 1/2″ x 6″ Steel | 1/2″ x 6″ Steel |
| Mounting Type | Quik*Link™ IV – Detachable | Quik*Link™ IV – Detachable |
Approximate weight does not include vehicle mounting kit.
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
Precise Control, Consistent Spreading for Class 6 & 7 Trucks
Maximize productivity on large-scale commercial jobs with the Ice Raven Salt Spreader Series by Sno-Way® V-Box 4300 salt spreader, boasting a massive 4.3 cubic yard capacity designed specifically for Class 6 and 7 trucks. Rely on its robust construction and gain unmatched control over material distribution using the advanced RS controller and patented inverted Vee system for consistent, efficient spreading.
Need more space in your truck bed? Check out our 3 Cubic Yard or 3.5 Cubic Yard models.
The V-box poly hopper is specifically designed to never collapse. This might seem odd but that is the main reason that poly spreaders and sanders don’t last. While we beefed up the construction we added specific tie-down connection points and anti-crush zones. You deserve quality.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your V-Box spreader (not included) See Spec chart for measurements.
RVB4300
4.3 CUBIC YARD
905 lbs.
133
110
57
52
127
12 Volt, 1/3 HP
12 Volt .6HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
Steel, E Coat, Powder Coat
standard
standard
standard
standard
standard
optional
optional
optional
RS Digital Control
optional
N/A
Class 6 &7
Precision driven spreader system focused on control, efficiency, and consistency.
Handle the largest commercial jobs with the Ice Raven Salt Spreader Series by Sno-Way® V-box 3500 spreader, built with a robust frame and high-capacity poly hopper suitable for trucks up to Class 7. Leverage the advanced RS Controller and adjustable inverted vee for ultimate control over material flow and achieve consistent spread patterns, powered by heavy-duty, fully enclosed motors.
Need more capacity? Check out our 4.3 Cubic Yard model.
The V-box poly hopper is specifically designed to never collapse. This might seem odd but that is the main reason that poly spreaders and sanders don’t last. While we beefed up the construction we added specific tie-down connection points and anti-crush zones. You deserve quality.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your V-Box spreader (not included) See Spec chart for measurements.
RVB3500
3-1/2 CUBIC YARD
825 lbs.
133
110
48
52
127
12 Volt, 1/3 HP
12 Volt .6 HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
Steel, E Coat, Powder Coat
standard
standard
standard
standard
standard
optional
optional
optional
RS Digital Control
optional
N/A
Class 5 & 6
High-Capacity, Precise Control for Commercial Applications
Maximize your commercial spreading operations with the high-capacity Ice Raven Salt Spreader Series by Sno-Way® V-Box 3000 salt spreader, featuring a durable roto-molded hopper mounted on a robust stainless steel frame for lasting performance. Dial in precise material flow with the adjustable inverted vee and command ultimate control using the RS controller for independent auger and spinner speeds, ensuring efficient and consistent coverage.
Need more capacity? Check out our 3.5 Cubic Yard or 4.3 Cubic Yard models.
The V-box poly hopper is specifically designed to never collapse. This might seem odd but that is the main reason that poly spreaders and sanders don’t last. While we beefed up the construction we added specific tie-down connection points and anti-crush zones. You deserve quality.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your v-box spreader (not included) See Spec chart for measurements.
RVB3000
3 CUBIC YARD
445 lbs.
111.6
89
48.5
50.75
104
12 Volt, 1/3 HP
12 Volt 1/2 HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
Steel, E Coat, Powder Coat
standard
standard
standard
standard
standard
optional
optional
optional
CLASS 5 Digital 6
optional
N/A
CLASS 5 AND 6
Premium Stainless Steel Spreading for Heavy-Duty Commercial Use
Invest in the ultimate durability with the Ice Raven Salt Spreader Series by Sno-Way® V-Box Stainless Steel 2500 salt spreader, featuring all stainless steel construction from the frame to the hopper for maximum longevity and corrosion resistance on 1-ton and larger trucks. Command precise control over high-capacity spreading operations using the advanced RS controller and inverted Vee design, ensuring efficient application of various materials job after job.
Also available in a lightweight Poly Hopper.
Need more capacity? Check out our 3 Cubic Yard model.
The V-Box Stainless Steel Salt Spreader and Sander is all stainless steel from the custom frame and drive support to the hopper and meant to last. The V-Box stainless steel inside hopper walls are designed for maximum flow of the toughest materials to minimize material bridging.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your V-Box spreader (not included) See Spec chart for measurements.
RVB2500SS
2 1/2 CUBIC YARD
671 lbs.
108.5
85.7
41″ (TOP OF KNOB)
51.8
100.5
12 Volt, 1/3 HP
12 Volt 1/2 HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
STAINLESS STEEL
standard
standard
standard
standard
standard
optional
optional
optional
RS Digital Control
optional
N/A
1 TON AND LARGER
Ultimate Control, Consistent Spreading, and Built to Last
Designed for demanding commercial use, the Ice Raven Salt Spreader by Sno-Way® V-Box 2500 salt spreader combines a rugged, corrosion-resistant build with the advanced RS Controller for superior control over material distribution. Achieve consistent spread patterns up to 30 feet and precisely match materials using the adjustable inverted vee, all powered by fully enclosed motors built to withstand harsh conditions.
Also available in a heavy duty Stainless Steel model
Need more capacity? Check out our 3 Cubic Yard model.
The V-Box frame and drive support starts as High Rolled Steel then it is sealed with an Automotive E-Coat Primer and finally finished with Military Grade Powder Coat – we are obsessed with quality.
The V-box poly hopper is specifically designed to never collapse. This might seem odd but that is the main reason that poly spreaders and sanders don’t last. While we beefed up the construction we added specific tie-down connection points and anti-crush zones. You deserve quality.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your V-Box spreader (not included). See Spec chart for measurements.
RVB2500
2 1/2 CUBIC YARD
370 lbs.
111.6
89
41
50.75
104
12 Volt, 1/3 HP
12 Volt 1/2 HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
Steel, E Coat, Powder Coat
standard
standard
standard
standard
standard
optional
optional
optional
RS Digital Control
optional
N/A
1 TON AND LARGER
Durable Stainless Steel Spreader
Invest in long-lasting performance with the Ice Raven Salt Spreader Series by Sno-Way 2000S, featuring robust stainless steel construction in the frame, hopper, and drive support for maximum corrosion resistance. Tackle demanding commercial jobs with confidence, utilizing the advanced RS Controller and inverted Vee system for precise control over material flow and spread patterns up to 30 feet.
Also available in a lightweight Poly Body model.
Need more capacity? Check out our 2.5 Cubic Foot model.
The V-Box 2000 Stainless Steel Salt Spreader
The V-Box Stainless Steel Salt Spreader and Sander is all stainless steel from the custom frame and drive support to the hopper and meant to last. The V-Box stainless steel inside hopper walls are designed for maximum flow of the toughest materials to minimize material bridging.
Our PATENTED Inverted Vee (NOT NEEDED or AVAILABLE on V-Box 10 and V-Box 500) is actually one of the secrets to the success of this V-Box spreader. The design allows the contractor to dial in the specific amount of material that will drop to the auger BASED on the material they are spreading.
The RS Controller offers Constant Drive and Auto Mode that allow customization of the independent auger and spinner and vibrator in maximizing material distribution. In addition, the controller operates key accessories such as pre-wetting systems and lighting.
The chutes are available in 16” short chute and 29” long chute. Easy on/off stainless steel and roto molded chute has a 16” four flute poly spinner to provide you long life and superior spread pattern up to 30’.
Choose a short chute or long chute to go with your V-Box spreader (not included) See Spec chart for measurements.
RVB2000
2 CUBIC YARD
600 lbs.
108.5
85.7
38 (TOP OF KNOB)
51.8
100.5
12 Volt, 1/3 HP
12 Volt 1/2 HP
16″ Diameter Poly Four Flute
16″ Short Chute, 29″ Long Chute
STAINLESS STEEL
standard
standard
standard
standard
standard
optional
optional
optional
RS Digital Control
optional
N/A
1 TON AND LARGER
