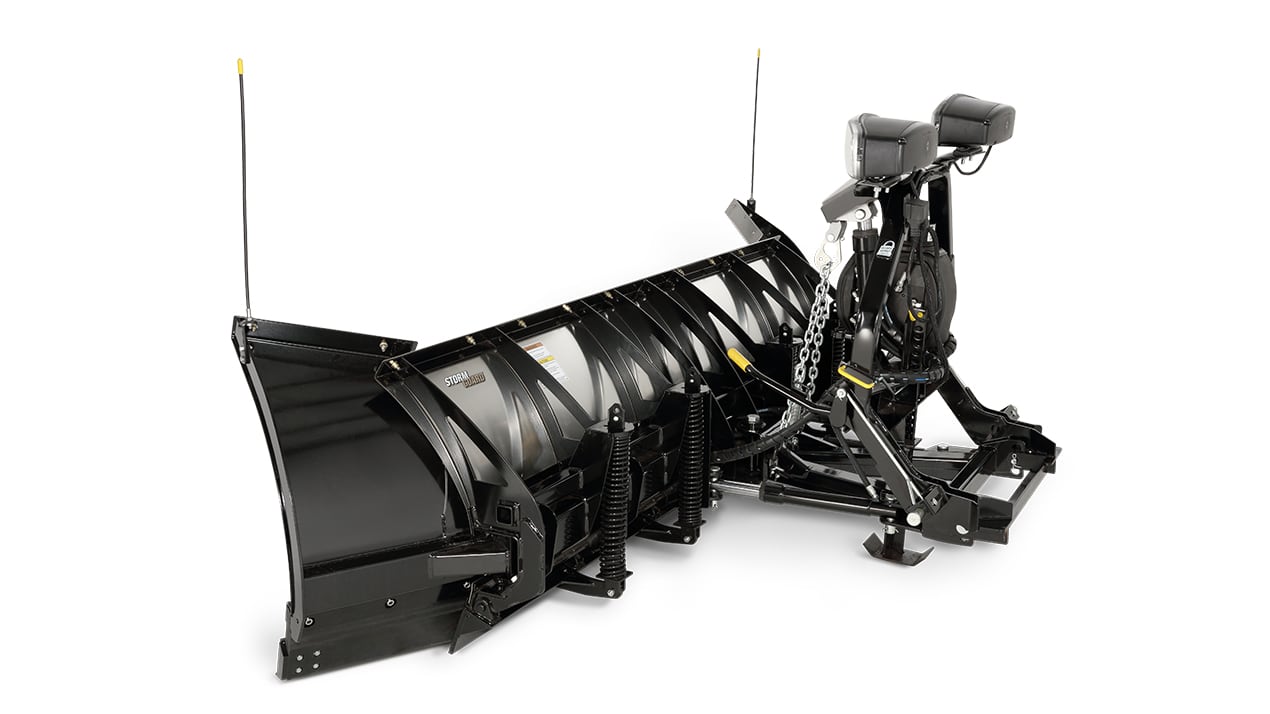

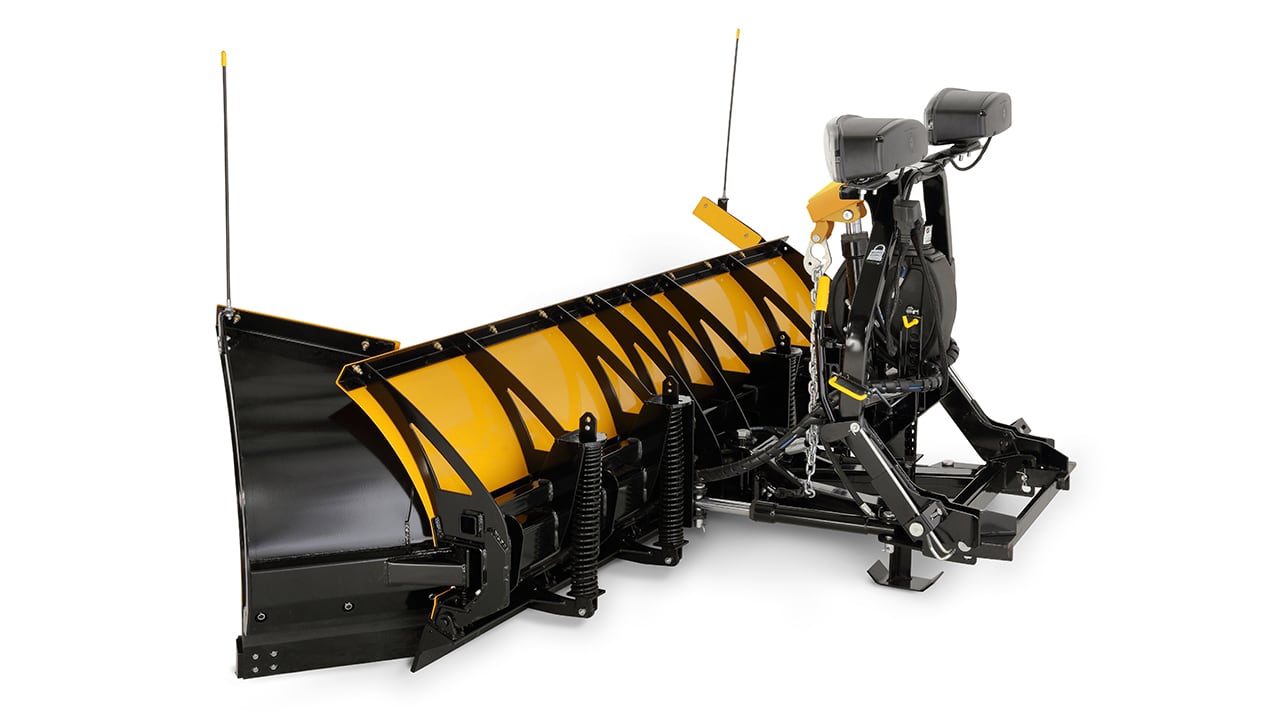

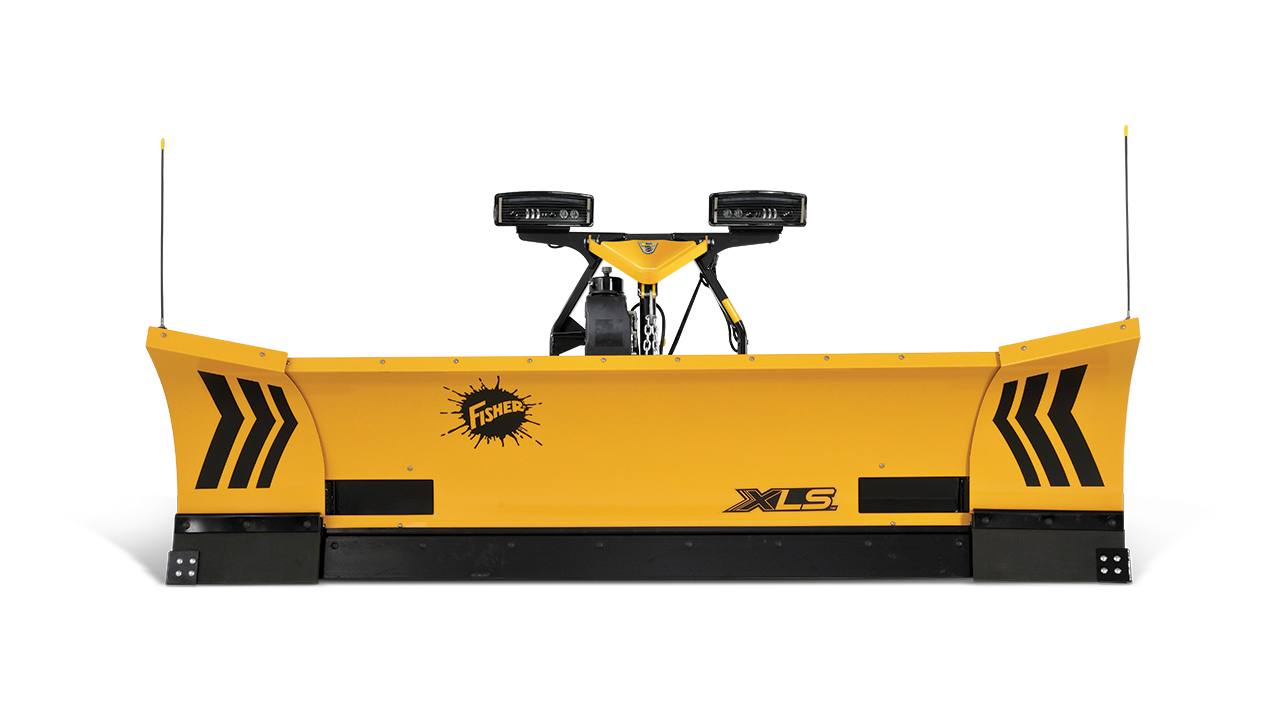

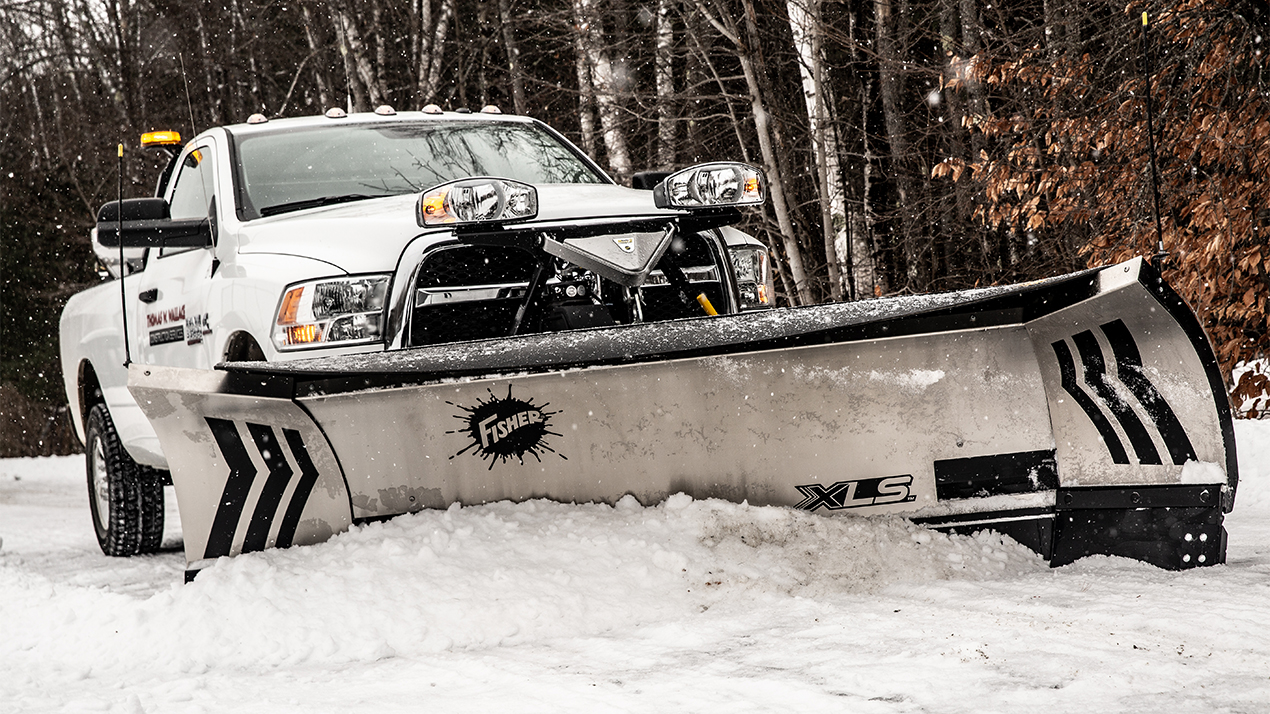

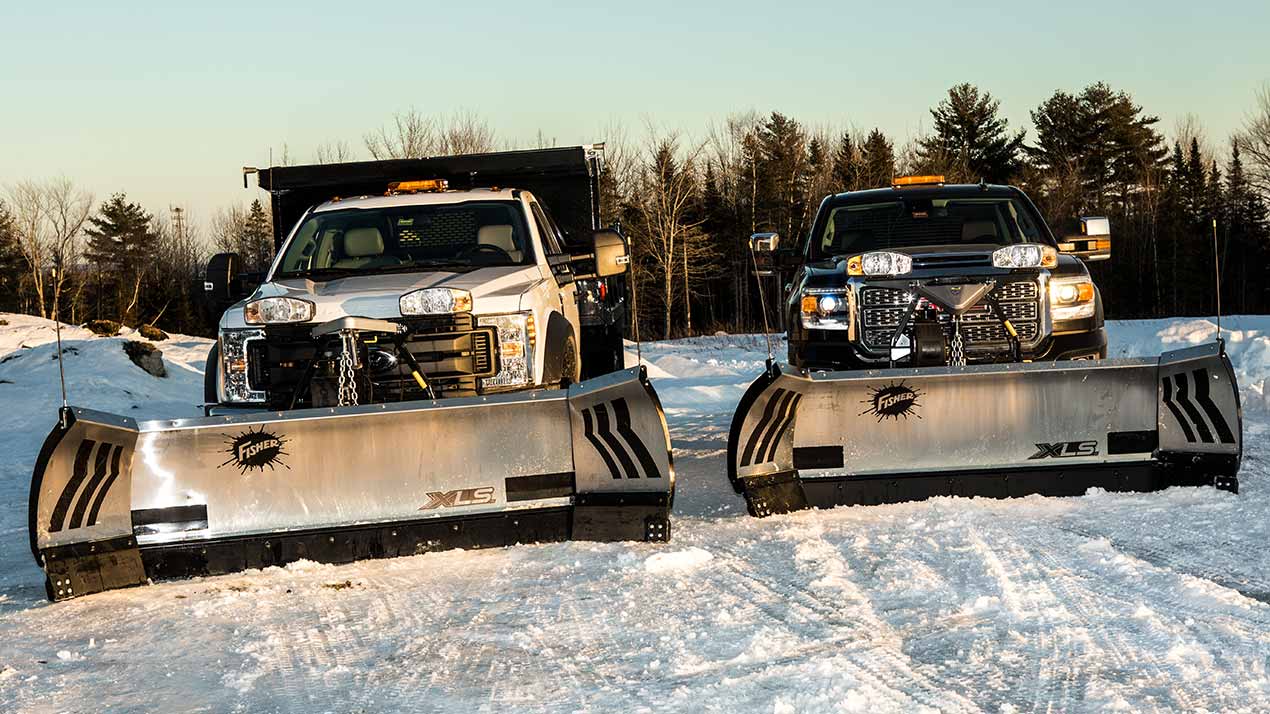

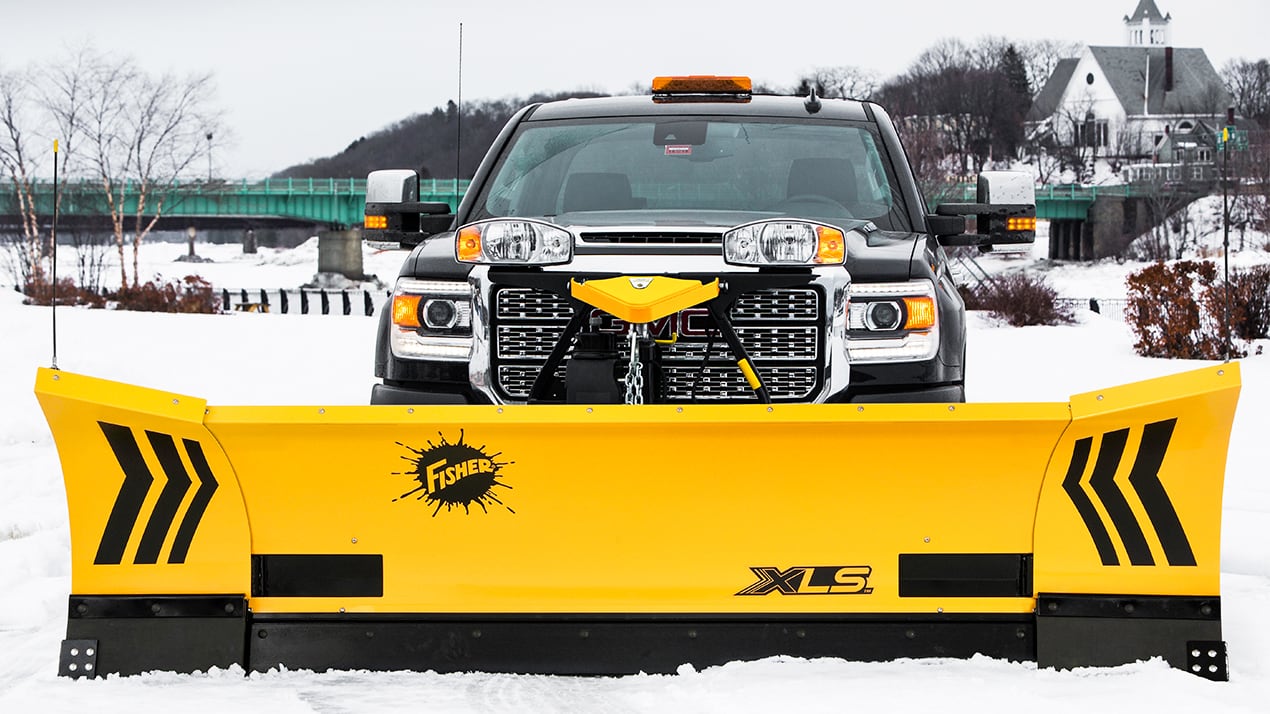

The XLS plows feature flared wings as tall as 36″ to maximize snow plowing efficiency at the touch of a button with Retracted Straight, Expanded Straight, Windrow and Scoop modes. The flared-wing design can aggressively cast snow further while windrowing, making it the ultimate windrowing machine. The wings expand forming an even larger plow to move more snow and can retract for transport. The flared wings can be controlled independently, quickly changing the plow configuration from retracted to expanded, to scoop and to windrow.

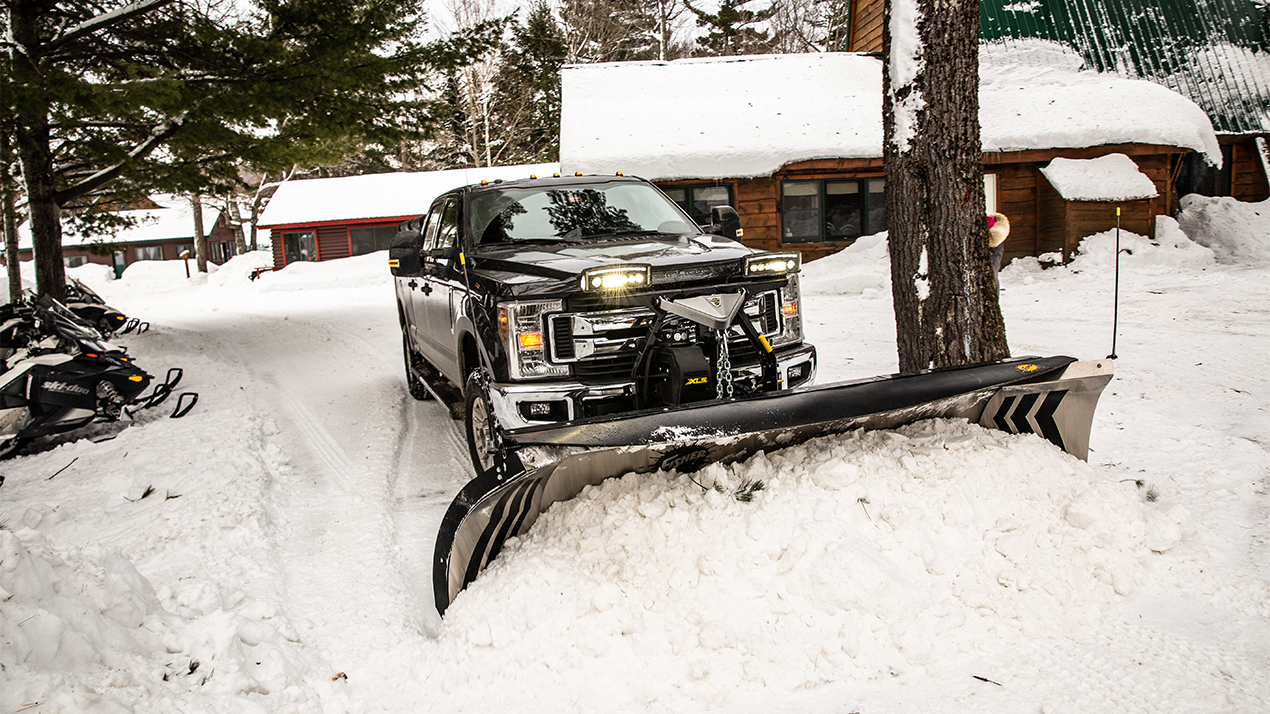

At the touch of a button, the XLS™ expandable snow plow expands from a retracted blade to an expanded blade, to a scoop plow, to an ultra-efficient windrow machine. The versatility of the XLS expandable length snow plow helps you get jobs done up to 30% faster.

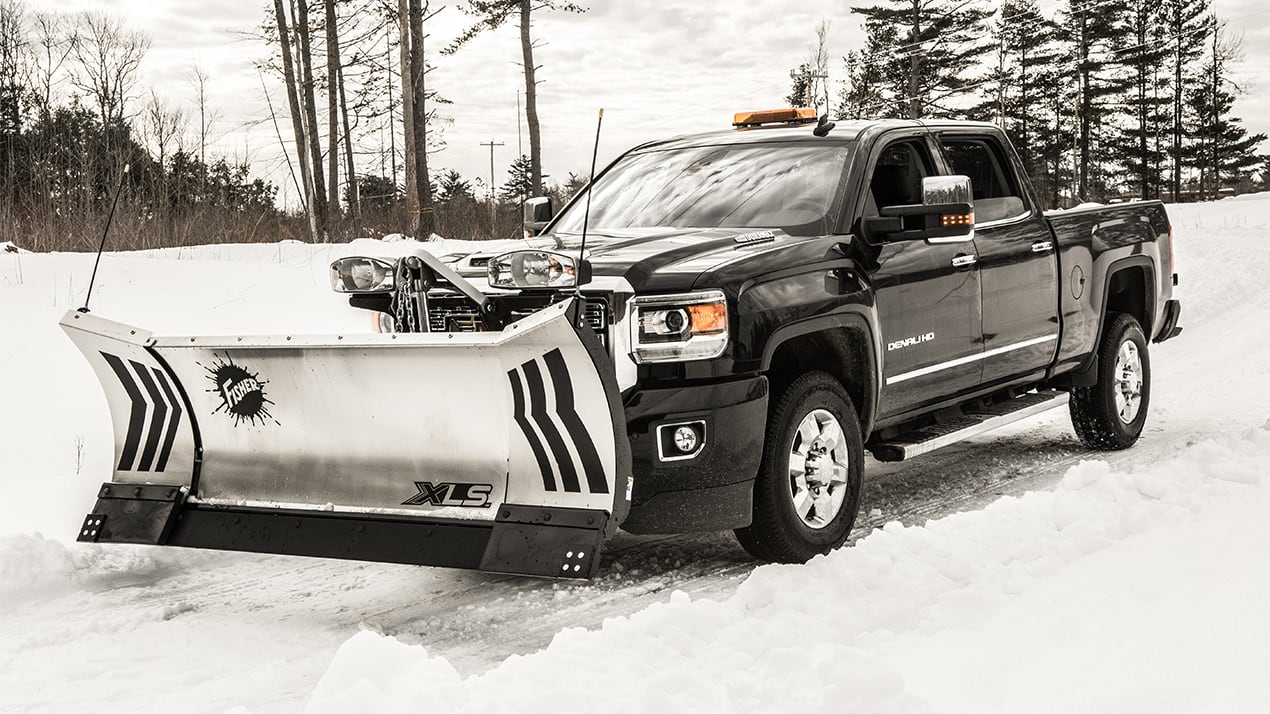

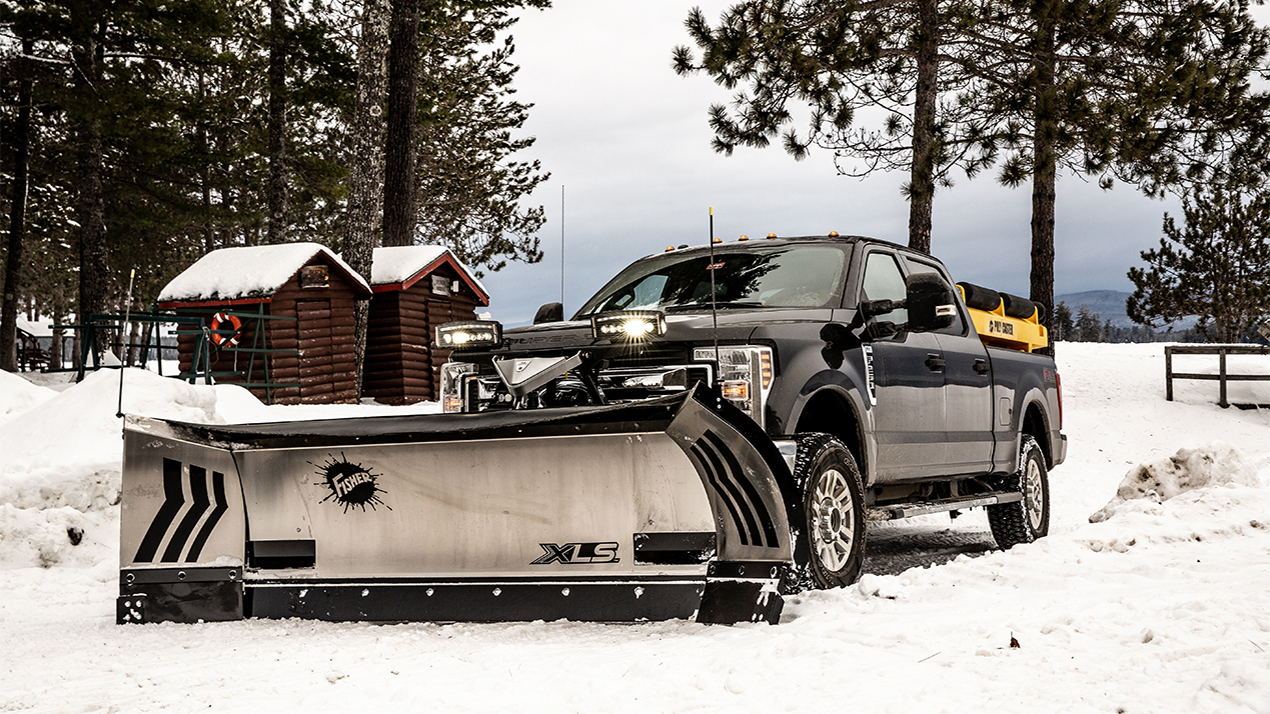

For the ultimate in snow-carrying capacity, angle both wings forward to configure the plow into scoop mode. The XLS plows can fully angle in the scoop position to effectively carry snow around corners with minimal spill-off, something v-plows cannot do.
| Specification | 74810 | 79810 | 74850 | 79850 |
|---|---|---|---|---|
| Blade Width | 8′-10′ | 8′-10′ | 8’6″-11′ | 8’6″-11′ |
| Approx. Weight | 1,078 lbs | 1,078 lbs | 1,140 lbs | 1,140 lbs |
| Plowing Width (Full Angle) | 7’2″ – 9′ | 7’2″ – 9′ | 7’11” – 10’6″ | 7’11” – 10’6″ |
| Blade Size | Retracted: 8′ Extended: 10′ Scoop: 8’10” |
Retracted: 8′ Extended: 10′ Scoop: 8’10” |
Retracted: 8’6″ Extended: 11′ Scoop: 9’10” |
Retracted: 8’6″ Extended: 11′ Scoop: 9’10” |
| Blade Height | At Center: 31″ At End: 35″ |
At Center: 31″ At End: 35″ |
At Center: 31″ At End: 36″ |
At Center: 31″ At End: 36″ |
| Blade Thickness | 14 ga | 14 ga | 14 ga | 14 ga |
| Lift Cylinder | 1¾” x 10″ | 1¾” x 10″ | 1¾” x 10″ | 1¾” x 10″ |
| Angling Rams | 1½” x 10″ | 1½” x 10″ | 1½” x 10″ | 1½” x 10″ |
| Specification | 74810 | 79810 | 74850 | 79850 |
|---|---|---|---|---|
| Moldboard Options | Stainless Steel | Powder-Coated Steel | Stainless Steel | Powder-Coated Steel |
| Blade Type | Adjustable Winged Blade | Adjustable Winged Blade | Adjustable Winged Blade | Adjustable Winged Blade |
| Vehicle Compatibility | Truck Class 2 – 5 & Tractors | Truck Class 2 – 5 & Tractors | Truck Class 2 – 6 | Truck Class 2 – 6 |
| Trip Springs | 4 | 4 | 4 | 4 |
| Vertical Ribs | 10 | 10 | 10 | 10 |
| Blade Cutting Edge | ½” x 6″ Steel (Standard) | ½” x 6″ Steel (Standard) | ½” x 6″ Steel (Standard) | ½” x 6″ Steel (Standard) |
| Wing Cutting Edge | 1½” x 9″ Poly (Standard) | 1½” x 9″ Poly (Standard) | 1½” x 9″ Poly (Standard) | 1½” x 9″ Poly (Standard) |
| Mount Type | Minute Mount® 2 | Minute Mount® 2 | Minute Mount® 2 | Minute Mount® 2 |
