MODEL – 22236
30 in. (76 cm) TurfMaster® with Casters

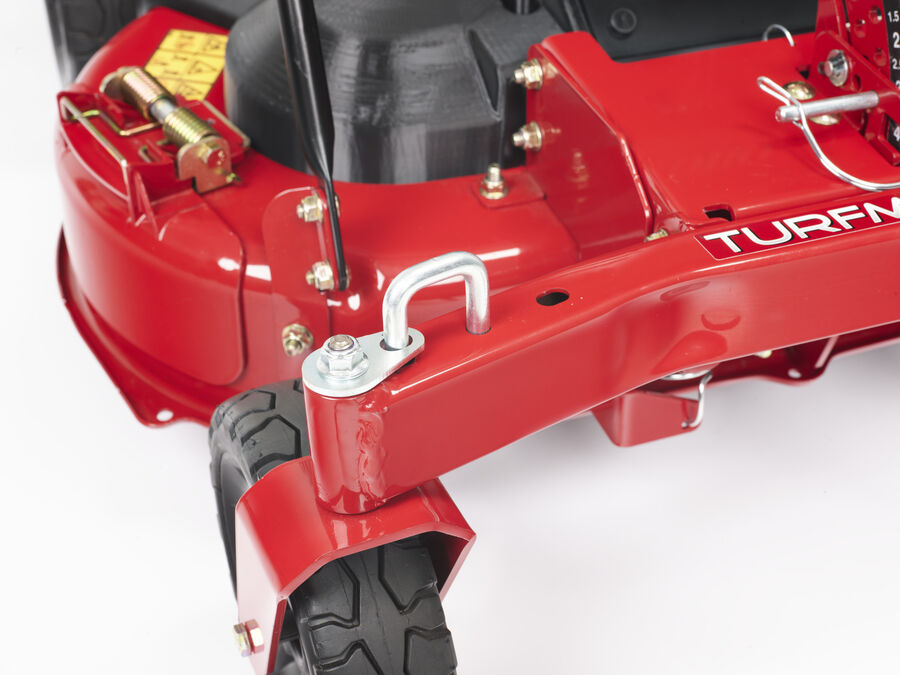

TurfMaster Caster Lock

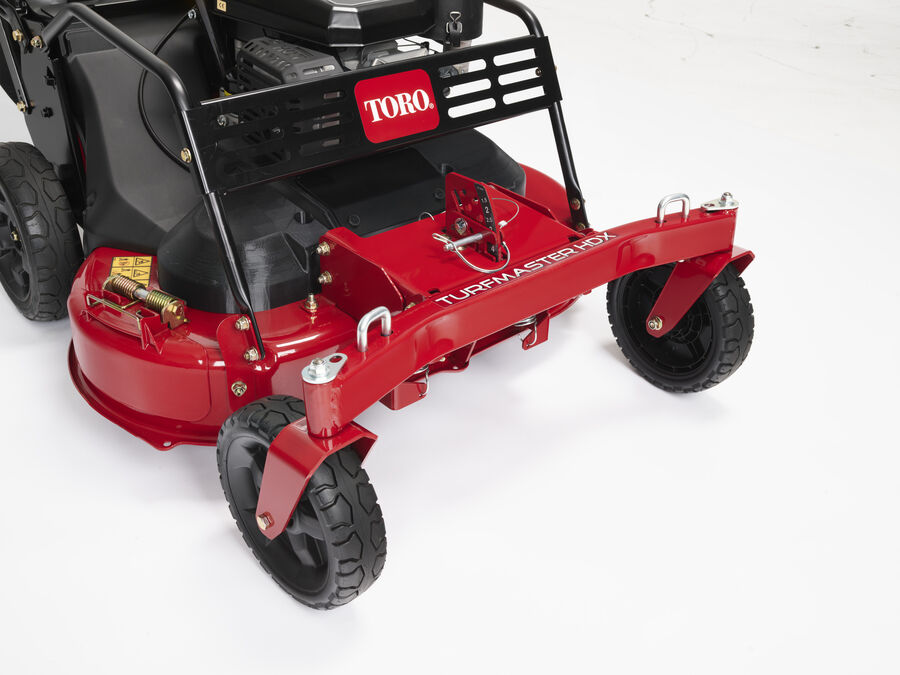

Front view of TurfMaster deck

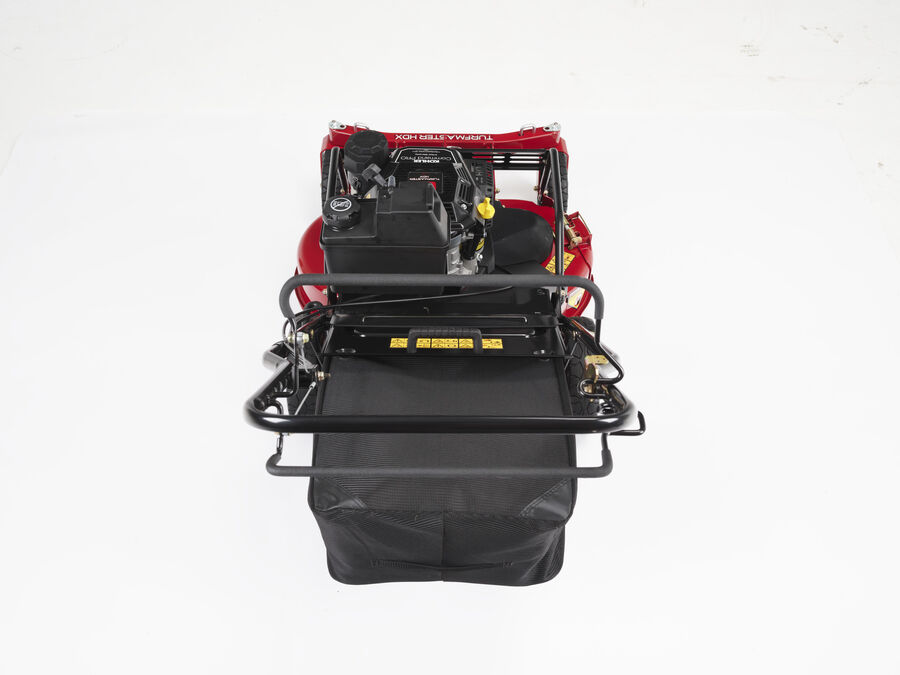

Top view of TurfMaster mower
30 in. (76 cm) TurfMaster® HDX with Casters
Model: 22236 UPC/EAN: 21038222363
See All Items in 30″ TurfMaster® HDX
Caster wheel front end set up – Locking capability to aid with holding straight lines
Reduced Refills – Less time refueling with the 1-gallon gas tank.
Toro Tough – Rubber tires with co-polymer wheels and ball bearings.
Horizon360®Business Management Software. Work More Efficiently. Run More Profitably.
| Bagger Capacity | 2.5 bushels |
|---|---|
| Blade Design | 0.135 in. / 0.343 cm Thick Steel |
| Blade Engagement | Blade Brake Clutch (BBC) |
| Blade Tip Speed | 18,000 ft/min / 5,486 m/min |
| Box Dimension | 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm |
| CARB Compliant | CARB Compliant |
| Cutting Width | 30 in / 76 cm |
| Deck Material | 13 Gauge Steel Deck / Cast Aluminum Frame |
| Engine | Kohler CV224 Command Pro 224 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 224 cc |
| Forward Mowing Speed | Up to 4.0 mph / 6.4 kph |
| Fuel Capacity | 1 gal. / 3.8 L / 4 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm in 0.50 in (1.3 cm) increments |
| Mulch, Bag, Side Discharge | Bag standard, Mulch standard, Side discharge standard |
| Number of Blades | 2 |
| Product Type | Walk Behind Mowers |
| Product Use | Commercial |
| Spindle Housing | Die Cast Spindle, 17 mm Cold Formed Spindle Shafts |
| Start Type | Pull Cord |
| Tires | Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Caster Wheels Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels |
| Transmission | Heavy Duty Self-Propelled |
| Weight | 195 lbs / 88.5 kg |
