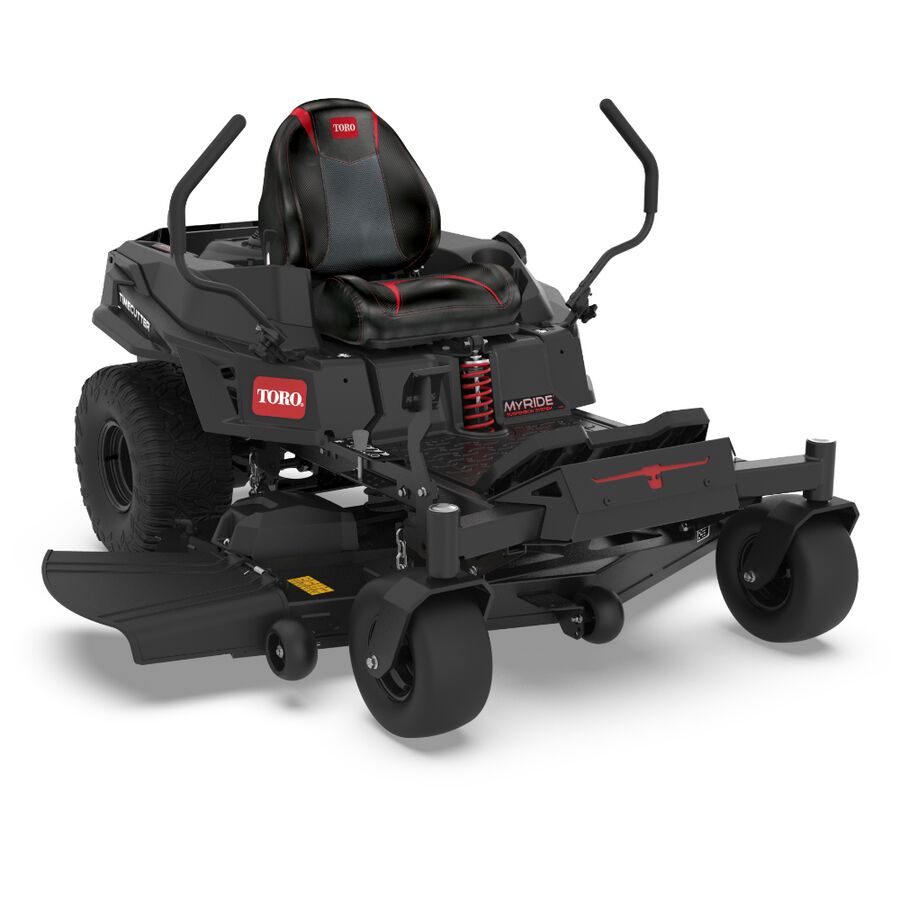

60 in. (152 cm) TimeCutter® Max Havoc™ MyRIDE® Zero Turn Mower
Featuring MyRIDE® Suspension System
Model: 77603
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Box Dimension | 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Cutting Width | 60 in / 152 cm |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Discharge Chute | Side |
| Drive System | Hydrostatic |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Standard |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Features | MyRIDE Suspension System |
| Product Type | TimeCutter Max MyRide |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission | Dual Hydrostatic HG-ZT2800 |
| Washout Port | Standard |
| Weight | 704 lbs / 319.3 kg |
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
EXMARK EXRAS651GKA48CA3 20.5 HP KAW RADIUS FX651V 48″
The Radius S-Series upgrades to a deluxe full-suspension operator seat to minimize bumps and vibration that reach the operator. When combined with the large 23-inch drive tires, the Radius S-Series delivers a smoother ride for increased operator comfort and decreased fatigue.
Fabricated and fully welded of high-strength steel, the UltraCut Series 3 cutting deck features Exmark’s exclusive Flow-Control baffles for Exmark Signature cut quality. Maintenance-free sealed bearing spindle assemblies and double-capture anti-scalp rollers offer increased durability with reduced maintenance requirements.
Dual Hydro-Gear ZT-3100 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 9 mph.
Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components –– engine, transmission and fuel tank –– low and centralized in the frame. This lowers the machine’s center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
With a floor pan and belt shields that remove easily, without tools, and an integrated jack receiver at the front of the frame, Radius models offer unparalleled maintenance access to the top and bottom of the cutting deck.
Radius S-Series models are covered by an extended 4-year/500-hour commercial warranty.
Coverage In Acres
< 1
Acres Per Hour
0.92
Width / Cutting Deck
30″
Drive
Belt-Drive
Starter
Recoil
Front Caster Tires
9″ x 2.4″, semi-pneumatic
Drive Tires
10.5 x 3.0, semi-pneumatic
Safety Package
Blade Brake Clutch (BBC)
Engine Brand
Rehlko
Transmission Brand
General Transmissions
Transmission Speeds
Infinitely Variable
Engine Model
CV200
Engine Displacement
200
Speed
0.0 mph to 3.8 mph forward
Engine Series
Command Pro
Fuel System
Carbureted
Transmission
Gear
Engine Spec
PH-CV200-3001
Engine Speed
3,500 rpm
Fuel Capacity
1-gallon
Air Filter
Dual element air cleaner
Drive Description
Self-propelled; rear-wheel gear-driven.
Fuel Type
Gas Carbureted
Fuel Indicator
None
Carb Compliant
No
Deck Style
Fixed Deck
Deck Style Description
Fixed deck, rear-discharge bagger and mulch plug or side discharge standard.
Deck Construction
4.6″ deep stamped steel with welded reinforcement
Cutting Heights
1.5″ to 5.0″ in 0.5″ increments
Blade Tip Speed
Approximately 18,500 fpm
Bag Capacity
2.5 bushels (20 gallons)
Blades
2 Blades at 15.4″ Length
Width
31.9″
Height
38.3″
Do you want the portability and versatility of a 30-inch deck width in your next commercial walk-behind mower? Look no further than the Exmark Commercial 30-inch X-Series. Travel at variable speeds between 0 and 3.8 mph thanks to a powerful Kawasaki engine. Produce precise turf length with Exmark’s patented height adjustment system. Tackle any project with fewer breaks with a one-gallon fuel tank.
Features:
| Front Caster Tires | 9″ x 2.4″; semi-pneumatic |
|---|---|
| Drive Tires | 10.5″ x 3.0″; semi-pneumatic |
| Safety Package | Blade Brake Clutch (BBC). |
| Parking Brake | Caliper Disc Brake |
| Engine Brand | Kohler® |
| Engine Model | CV200 |
| Engine Displacement | 200 |
| Speed | 0.0 mph to 3.8 mph (6.1 kmph) forward. |
| Fuel System | Carbureted |
| Engine Series | Command Pro |
| Engine Speed | 3500 rpm |
| Drive | Belt-Drive |
| Engine Spec | PH-CV200-3001 |
| Fuel Capacity | 1 gallon (3.8-L) |
| Air Filter | Dual element air cleaner |
| Drive Description | Self-propelled; rear-wheel gear-driven. |
| Fuel Type | Gas Carbureted |
| Fuel Indicator | None |
| Carb Compliant | No |
| Deck Style | Fixed Deck |
| Deck Style Description | Fixed deck; Rear-discharge bagger and mulch plug or side discharge standard. |
| Width / Cutting Deck | 30″ |
| Deck Construction | 4.6″ Deep Stamped Steel with welded reinforcement |
| Cutting Heights | 1.5″ (3.8 cm) to 5.0″ (12.7 cm) in 0.5″ (1.3 cm) increments. |
| Blade Tip Speed | Approximately 18500 fpm. |
| Blades | 2 Blades at 15.4″ Length |
| Bag Capacity | 2.5 bushels (20 gallons) |
| Width | 31.9 in. (81cm) |
| Height | 38.3 in. (97.2 cm) |
| Length | 68 in. (172.7 cm) |
| Curb Weight | 185 |
Fuel Capacity
1 gallon
Speed
3.8 mph
Cutting Height Range
1.5″ – 5.0″
Coverage In Acres
< 1
Acres Per Hour
0.92
Pivoting front wheels make turning and maneuvering easy without lifting the front of the mower. Increased cut quality and reduced operator fatigue are two great results.
A popular choice for pros tackling one jobsite after another, the high-torque SRM-2320T straight-shaft string trimmer increases productivity while decreasing fatigue. With a 2:1 gear ratio, it delivers 28% more torque than the SRM-225, making quick work of overgrown grasses.
TOP FEATURES
| Engine Displacement (cc) | 21.2 |
| Drive Shaft | 4-Layer Cable |
| Shaft Length (in) | 59 |
| Fuel Capacity (ml) | 420 (14.2 fl. oz.) |
| Cutting Head | Speed-Feed® 400 |
| Cutting Swath (in) | 17 |
| Shaft Type | Straight |
| Starting System | Standard |
| Shield | Std. SRM |
| Nylon Line (in dia) | .095 Black Diamond® |
| Dry Weight (lb) (Includes cutting head, excludes harness) | 12.2 (5.5 kg) |
| Dry Weight (lb) (Without cutting head, includes shield) | 11.6 (5.3 kg) |
| Warranty | 5 year consumer / 2 year commercial |
Spend less time on grime. The PW-3100 pressure washer delivers up to 3,100 PSI of cleaning power to effortlessly remove years of stubborn buildup. It’s ideal for rejuvenating decks, patios, sidewalks and driveways and cleaning the exteriors of homes and automobiles.
TOP FEATURES
| Max Water Pressure | 3,100 |
| Max Water Flow | 2.5 gallon/min |
| Pump Type | Axial Cam |
| Chemical Injection | No |
| Wheel Type | Flat-free tires |
| Hose Length | 25 ft. |
| Hose Material | Rubber, braided |
| Hose Diameter | N/A |
| Hose Connections | N/A |
| Spray Tips | 4 |
| Hose Storage | Yes |
| Warranty | 3 year consumer / 1 year commercial 1 year Consumer Pump Warranty / 90 Days Commercial Pump Warranty. |
