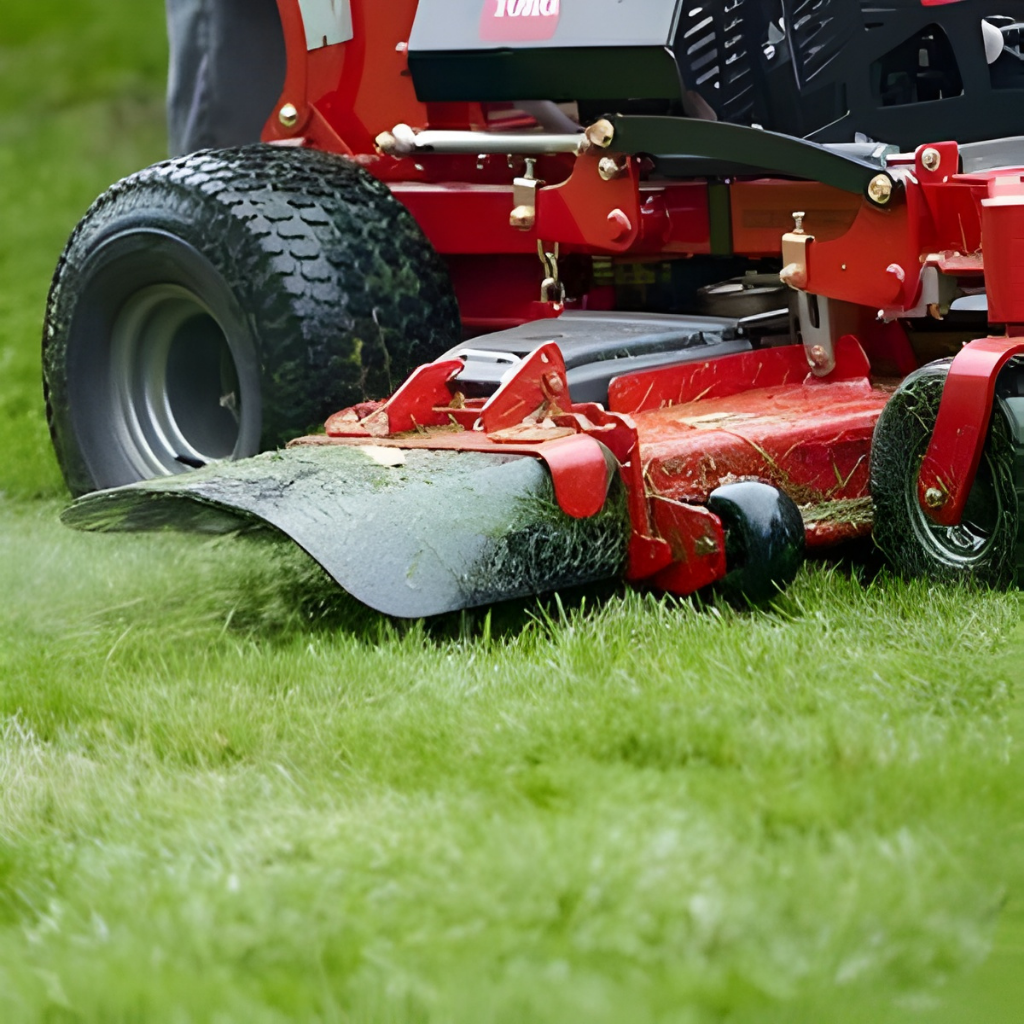

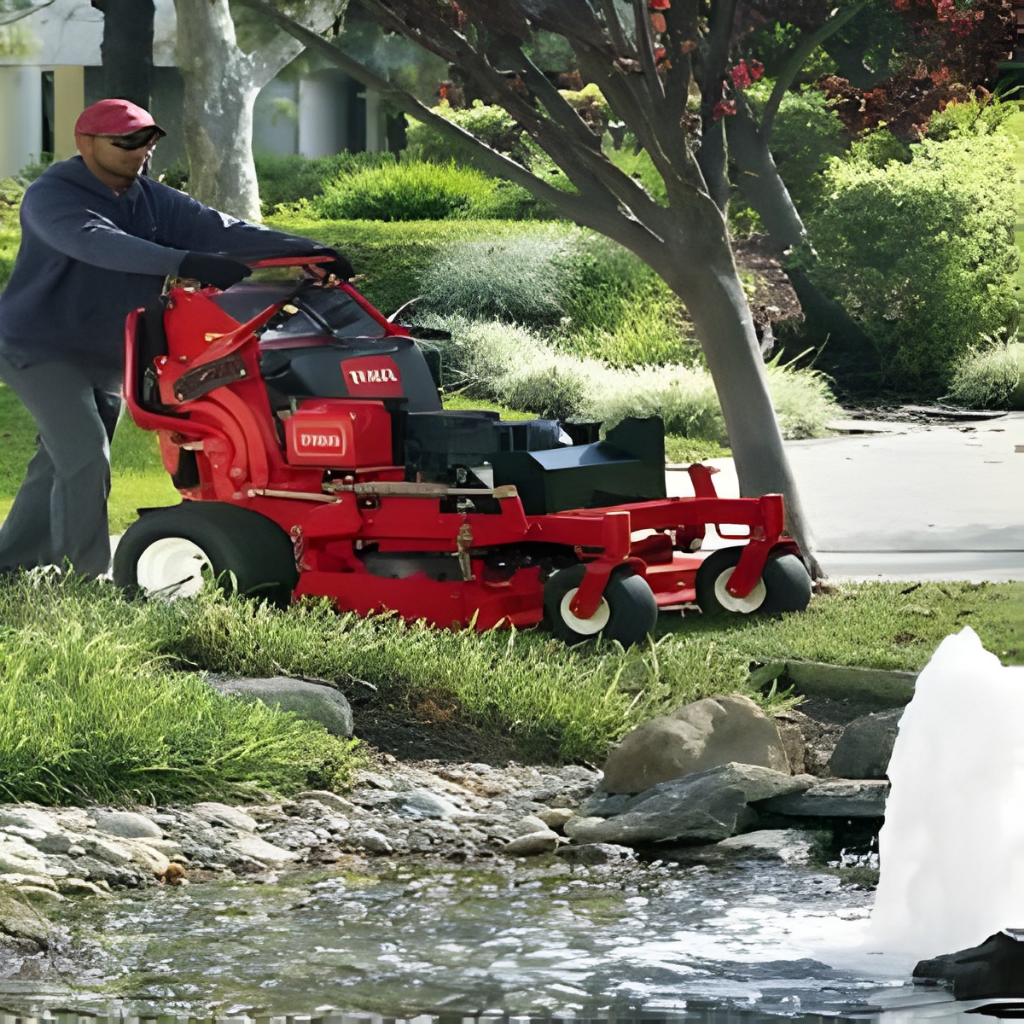

Now you can be more productive all-season long with the innovative Toro® GrandStand® MULTI FORCE stand-on mower that has the ability to attach a plow, power broom and bagging system. It features a 52 in. Turbo Force cutting and 26.5 hp Kohler EFI 747cc engine. It’s designed to give you even more productivity. The smaller footprint takes up less space on the trailer when transporting. Mows 25% faster with speed up to 10 mph, has a 10.5 gallon fuel tank that allows you to go farther and work longer. We’ve eliminated the hydraulic hoses, reduced parts, no routine greasing and simplified the design to save you time. All GrandStand stand-on mowers give you exceptional operator visibility which leads to less property damage and a higher quality of work. Best of all, great traction on slopes and maneuverability.
| Adjustable Discharge Baffle | Standard, Tools-Free |
|---|---|
| Air Filter | HD Canister |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Blades | 0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions | 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) |
| Caster Tires | 11 in. x 4 in. – 5 in. (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic |
| Clutch | Electromagnetic |

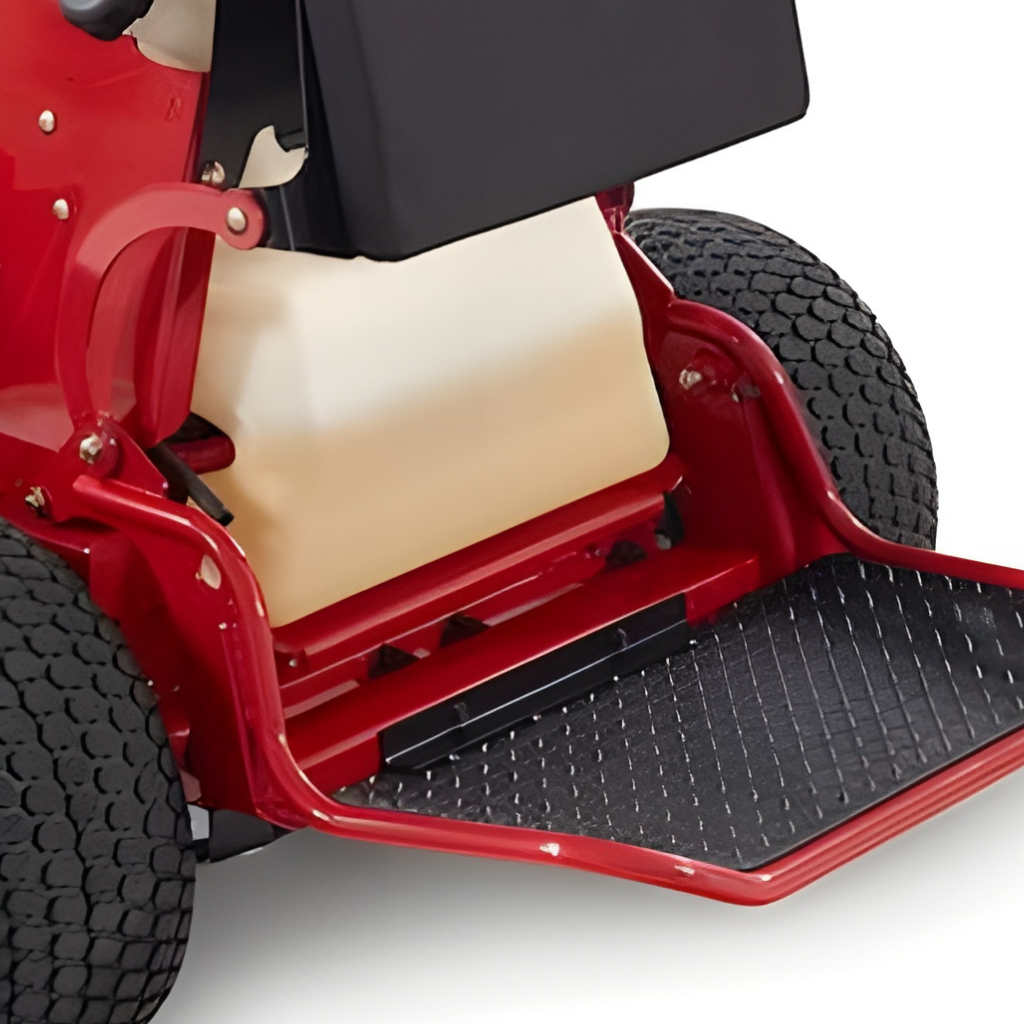

| Comfort Platform | Foldable Operator Platform with Suspension |
| Controls | Twin lever |
| Deck Design | 80-grade 7-gauge 52″ (132 cm) TURBO FORCE® w/bull-nose bumper |
| Deck Material | 7 Gauge Steel |
| Deck Size | 52 in / 132 cm |
| Discharge Chute | Rubber |
| Drive System | Unitized Pumps 10cc rev Wheel Motors 10 cir |
| Drive Tires | 20 in. x 10.5 in. – 8 in. (50.8 cm x 26.7 cm – 20.3 cm) |

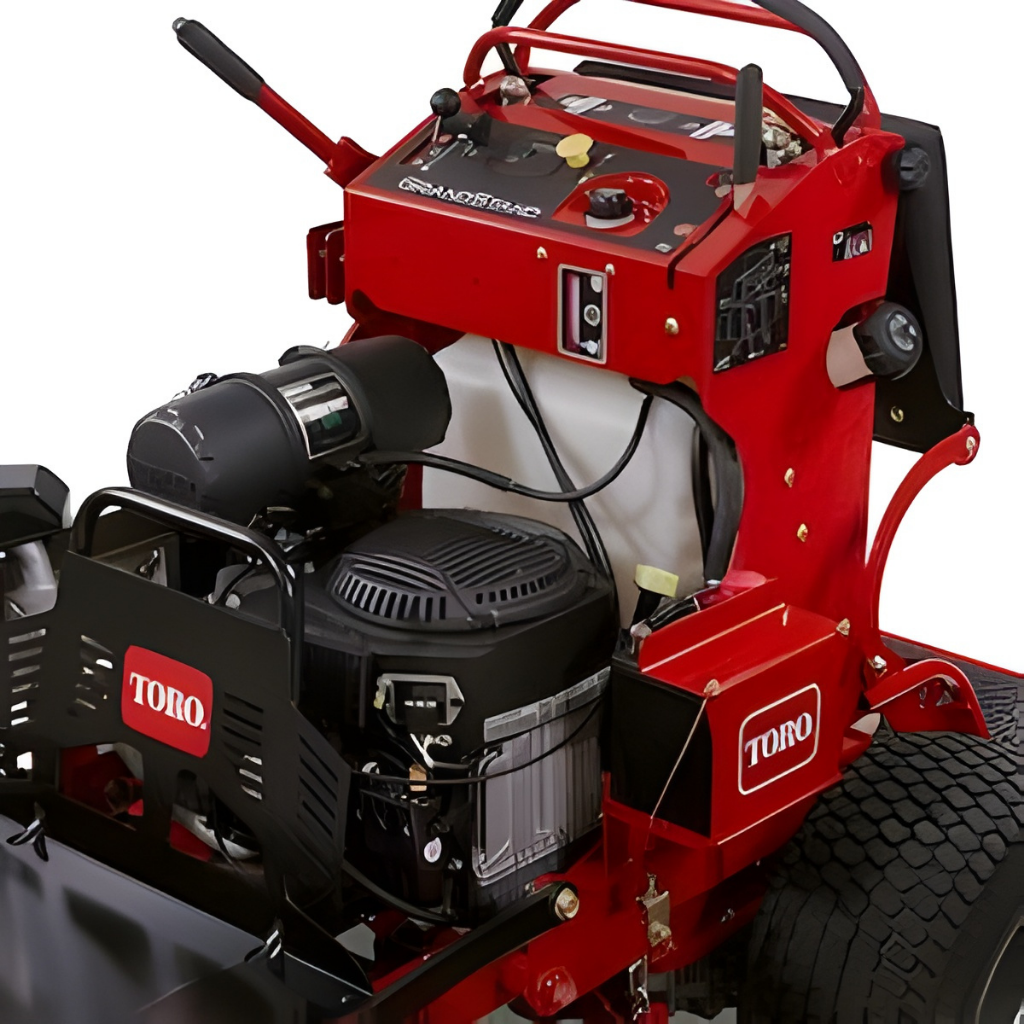

| Engine | 26.5 hp Kohler Command EFI 747 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 747 cc |
| Engine Horsepower | 26.5 hp |
| Forward Ground/Transport Speed | Up to 10.0 mph / 16.0 kph |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm |
| Hour Meter | Standard |
| Hydraulic Fluid | Premium synthetic |
| Product Type | Stand-On Mowers |
| Product Use | Commercial |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | 9.375 in / 23.8 cm Diameter Cast Iron |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Weight | 949 lbs / 430.5 kg |
Interest rates vary by person and trailer. All payments are estimates. Tax, title and any other fees are extra.
Recommended for You
| MODEL: | ECDWL1060LP |
| OVERALL LENGTH: | 14′ |
| OVERALL WIDTH: | 80″ |
| OVERALL HEIGHT: | 58″ |
| EXT. BOX LENGTH: | 10′ |
| EXT. BOX WIDTH: | 60″ |
| BOX DEPTH: | 18″ |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 250 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 2990 lbs |
| CURB WEIGHT: | 1562 lbs |
| PAYLOAD: | 1428 lbs |
| AXLES: | 1 x 3500 lbs |
| BRAKES: | Optional |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| BREAK AWAY KIT: | Optional |
#### OVERVIEW
Weberlane Enclosed Cargo trailers are known for their quality components and durable build. The Weberlane line is ideal for contractors and landscapers who are looking for an enclosed trailer a cut above the rest to ensure peace of mind when they’re out on the road on a daily basis, and every moment of downtime would mean loss of profits.
#### FEATURES
Single Double Doors w/ Door Holders
Semi-Style Cam-lock Door Latches
Spring Axle – EZ Lube Hubs
White Modular Wheels
Radial Tires
2″ Coupler 5000 lbs
Top Wing Jack 2000 lbs
Bolt-on Safety Chains
1/4″ Paneling Interior Lining
Interior Light Switch
Interior Dome Light
030 Aluminum Exterior
Screwless Aluminum Roof
Aluminum Tread Plate Stoneguard
Aluminum Fenders
1 1/2″ Trim Level
Molded License Plate Holder
Entire Steel Framework Painted
3M Corrosion Barrier
#### SPECS
Overall Length: 14′
Overall Width: 7′ 8″
Overall Height: 7′ 10″
Interior Length: 11′ 10″
Interior Width: 5′ 9″
Interior Height: 72″
Rear Door Type: Double
Door Width: 5′ 3″
Door Height: 5′ 5″
Hitch Weight: 175 lbs
Hitch Height: 16″
Ball Size: 2″
Platform Height: 18″
G.V.W.R: 2990 lbs
Cub Weight: 1220 lbs
Payload: 1770 lbs
Axles (Single): 3500 lbs
Brakes: Optional
Tires: ST205/75 R15
Wheels:1 5″ 5 Bolt
Frame: 2 x 3″ Tubing
Floor (24″ O/C): 3/4″ Marine Grade
Sidewalls (16″ O/C): 1/4″ Paneling
MODEL: W716ACTW
Tandem axle
ALUMINUM CARGO TRAILERS
Aluminum Frame Enclosed Trailers are the style to choose if you are tired of stone chipped trailer frames, rusty tongues or corroded cross members. Ideal for lighter use applications. All Weberlane Aluminum Frame enclosed trailers are built to contractors specs, like tubing wall studs, 16″ floor and stud spacing, 3/8 inch interior linings and wider roof trim.
| MODEL: | W716ACTW |
| OVERALL LENGTH: | 20′ 6″ |
| OVERALL WIDTH: | 8′ 6″ |
| OVERALL HEIGHT: | 8′ |
| INTERIOR LENGTH: | 18′ 2″ |
| INTERIOR WIDTH: | 6′ 9″ |
| INTERIOR HEIGHT: | 72″ |
| REAR DOOR TYPE: | Double |
| REAR DOOR WIDTH: | 6′ 3″ |
| REAR DOOR HEIGHT: | 5′ 5″ |
| HITCH WEIGHT: | 395 lbs |
| HITCH HEIGHT: | 18″ |
| BALL SIZE | 2 5/16″ |
| PLATFORM HEIGHT: | 20″ |
| G.V.W.R | 7000 lbs |
| CURB WEIGHT: | 2140 lbs |
| PAYLOAD: | 4860 lbs |
| AXLES (TANDEM): | 3500 lbs |
| BRAKES: | Electric |
| TIRES: | ST205/75 R15 |
| WHEELS: | 15″ 5 Bolt |
| FRAME: | 2 x 6″ Tubing |
| FLOOR: (16″ O/C) | 3/4″ Marine Grade |
| SIDEWALLS (16″ O/C) | 3/8″ Wafer Board |
2026 WEBER LANE 82X14 CONTRACTOR SERIES DUMP 14000 GVWR GALVANIZED
| MODEL: | DWL1472LP |
| OVERALL LENGTH: | 18′ |
| OVERALL WIDTH: | 98″ |
| OVERALL HEIGHT: | 64″ |
| EXT. BOX LENGTH: | 14′ |
| EXT. BOX WIDTH: | 78″ |
| BOX DEPTH: | 24″ + 10″ Gussets |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 449 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 10,138 lbs |
| CURB WEIGHT: | 2926 lbs |
| PAYLOAD: | 7212 lbs |
| AXLES (Tandem): | 2 x 5200 lbs |
| BRAKES: | Electric 2 Axles |
| TIRES: | ST225/75 R15 C |
| WHEELS: | 15″ 6 Bolt |
| BREAK AWAY KIT: | Standard |
| MODEL: | DWL1272LP |
| OVERALL LENGTH: | 16′ |
| OVERALL WIDTH: | 98″ |
| OVERALL HEIGHT: | 64″ |
| EXT. BOX LENGTH: | 12′ |
| EXT. BOX WIDTH: | 78″ |
| BOX DEPTH: | 24″ + 10″ Gussets |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 449 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 10,138 lbs |
| CURB WEIGHT: | 2867 lbs |
| PAYLOAD: | 7271 lbs |
| AXLES (Tandem): | 2 x 5200 lbs |
| BRAKES: | Electric 2 Axles |
| TIRES: | ST225/75 R15 C |
| WHEELS: | 15″ 6 Bolt |
| BREAK AWAY KIT: | Standard |
| MODEL: | DWL1472LP |
| OVERALL LENGTH: | 18′ |
| OVERALL WIDTH: | 98″ |
| OVERALL HEIGHT: | 64″ |
| EXT. BOX LENGTH: | 14′ |
| EXT. BOX WIDTH: | 78″ |
| BOX DEPTH: | 24″ + 10″ Gussets |
| PLATFORM HEIGHT: | 28″ |
| HITCH WEIGHT: | 449 lbs |
| HITCH HEIGHT: | 16″ |
| G.V.W.R | 10,138 lbs |
| CURB WEIGHT: | 2926 lbs |
| PAYLOAD: | 7212 lbs |
| AXLES (Tandem): | 2 x 5200 lbs |
| BRAKES: | Electric 2 Axles |
| TIRES: | ST225/75 R15 C |
| WHEELS: | 15″ 6 Bolt |
| BREAK AWAY KIT: | Standard |
